Features
Specifications

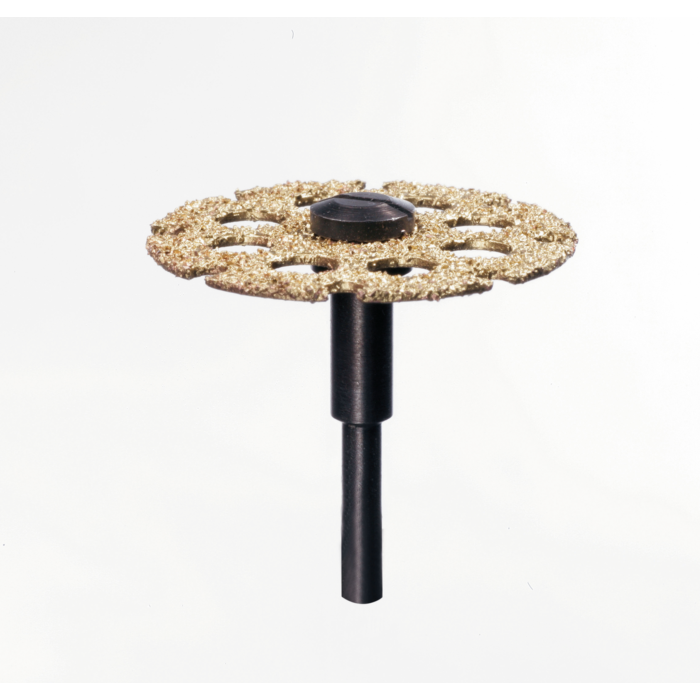

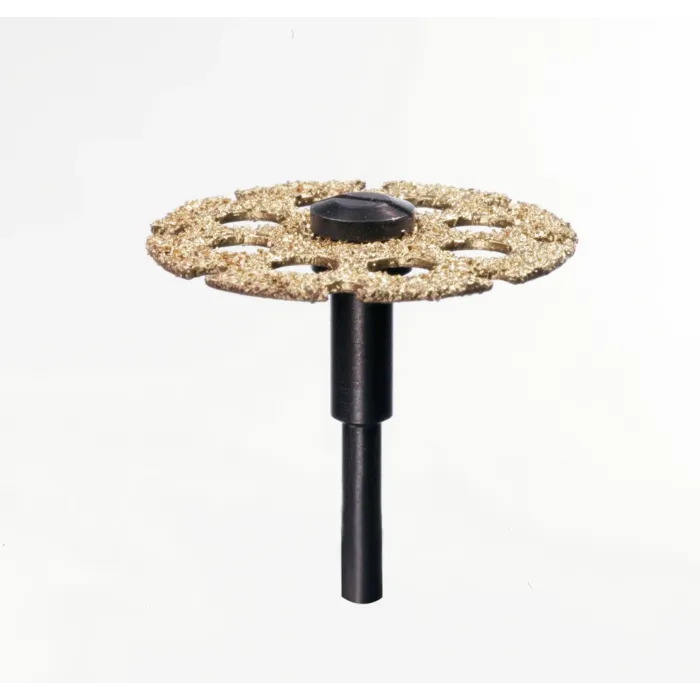

For cutting and shaping on soft and hard woods, fiberglass, plastics and laminates (not metal). This versatile wheel is coated with tungsten carbide grit for long life. It is coated on both sides, so it cuts and finishes in one operation.
- Use the edge of the wheel for cutting and slotting.
- Use the "face" of the wheel for shaping.
- Do not use on metal.
- For best results, insert the accessory bit all the way into the tool and then back it out slightly before tightening down. This provides plenty of shank for the collet or chuck to hold onto the bit.
- Cuts 33% deeper than former cutting/shaping wheel, up to 1/2 In. deep
- Ideal for cutting and shaping soft and hard woods, it can also be used on fiberglass, plastics and laminates
- Wheel coated with tungsten carbide grit for long life
- Coated on both sides, so it cuts and finishes in one operation
Brand | Dremel |
---|---|
UPC | 080596026196 |
Store Location (Lititz, PA) | Aisle 26 End Cap |
Package Length (in) | 2.60" |
Package Width (in) | 1.80" |
Package Height (in) | 1.40" |
Manufacturer Part Number | 543 |
Accessory Type | Rotary Tool Accessory |
Arbor Hole Size | 1/8 in |
Bit Diameter Inch | 1-1/4" |
Bit Diameter mm | 31.8 mm |
Blade Thickness (in) | 0.07 |
Blade Tooth Material | Carbide |
Blade/Bit Material | Carbide |
Color / Finish | Gold |
Color Code | Red |
Country of Origin | Canada |
Cut Off Wheel Diameter | 1-1/4" |
Expansion Slots | Yes |
Kerf (in) | 0.07 |
Mandrel Attachment Type | Screw On |
Maximum RPM | 30000 |
Net Tool Weight (lbs) | 0.02 |
Package Quantity | 1 |
Recommended Bit / Blade Material Application | Cutting Wood |
Rotary Tool Accessory Type | Cut Off Disc |
Saw Blade Type | Rotary Tool |
Set / Individual | Individual |
Size | 1.25 |
Thickness | .070", 1.8 mm |
Tooth Count | 8 |
