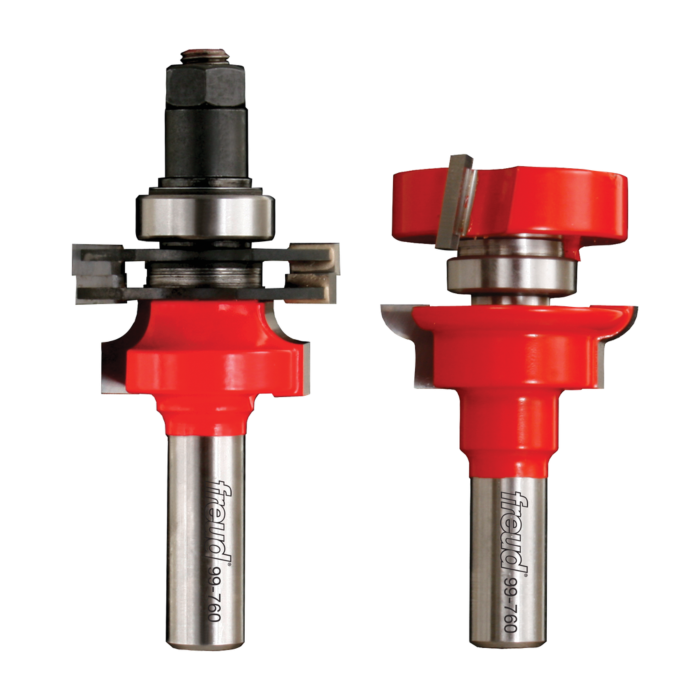

1-11/16" (Dia.) Premier Adjustable Rail & Stile Bit - Round Over
SKU: F99760
| Location: Aisle 21, Section I6
$144.99
Only 1 in stock! 1 in stock
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.
- Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
- Patented Extended Tenon Capability for milling extra-strong long tenon joints
- Unique cutter geometry to eliminate tearout
- TiCo™ Hi-Density Carbide to maximize bit life and material finish
- Freud Perma-SHIELD® Coating
- Veneered Plywood
- Hardwoods
- Softwoods
- Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock
| Brand | Freud Tools |
|---|---|
| UPC | 008925087090 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 5.45" |
| Package Width (in) | 4.55" |
| Package Height (in) | 4.55" |
| Manufacturer Part Number | 99-760 |
| Overall Dia. (D) | 1-11/16" |
| Overall Length (H) | 3-3/4" |
| Large Radius (R1) | 7/32" |
| Shank Dia. (A) | 1/2" |
