Parker

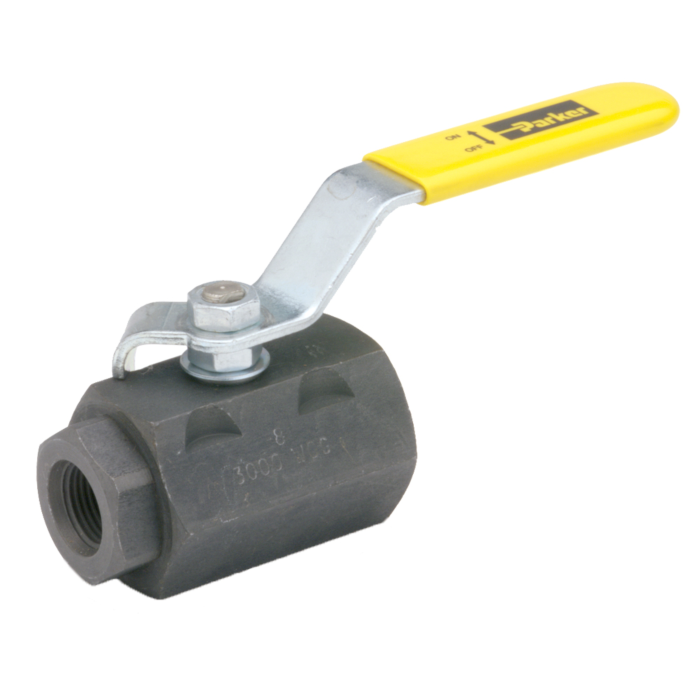

V506CS-8, CARBON STEEL SAE BALL VALVE

SKU: XV506CS8
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
Features chevron-down chevron-up
Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's carbon steel ball valves are available in the following styles., Female Pipe x Female Pipe, Female Straight Thread x Female Straight Thread, Panel Mount, High Pressure 6,000 psi. Options for the carbon steel ball valve include:, Tee Handle, Oval Handle, Padlocking Handle. Markets:, Heavy Duty Truck, Mobile , Agriculture, Construction, Industrial.
  • Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's carbon steel ball valves are available in the following styles., Female Pipe x Female Pipe, Female Straight Thread x Female Straight Thread, Panel Mount, High Pressure 6,000 psi. Options for the carbon steel ball valve include:, Tee Handle, Oval Handle, Padlocking Handle. Markets:, Heavy Duty Truck, Mobile , Agriculture, Construction, Industrial.
Specifications chevron-down chevron-up
Brand Parker
Store Location (Lititz, PA) Aisle 09, Section N6
Package Length (in) 5.60"
Package Width (in) 2.40"
Package Height (in) 3.00"
Manufacturer Part Number V506CS-8
Maximum Operating Temperature 218 °C | 425 °F
Minimum Operating Temperature -28 °C | -20 °F
Function Ball Valve
Maximum Operating Pressure 206 bar
Connection Size 1/2 inch
Seal Material PTFE
Body Material Carbon Steel
Ball Material Steel
Division Fluid System Connectors Division
Mounting Type Panel
Product Type Ball Valve
Actuation Type Manual
Shape in-line | In Line
Connection Type NPT, Straight Thread, SAE J1926-1
Configuration In-Line
Handle Type Lever
Seat Material PTFE
Locking Mechanism Non-Locking
Connection 1 Thread Style SAE Straight Thread
Connection 1 Thread Size 3/4-16 inch
Style Straight Thread Ends
Handle Steel Lever
Maximum Working Pressure 3000 psi
Connection 2 Thread Style SAE Straight Thread
Connection 2 Thread Size 3/4-16 inch
