Safeway

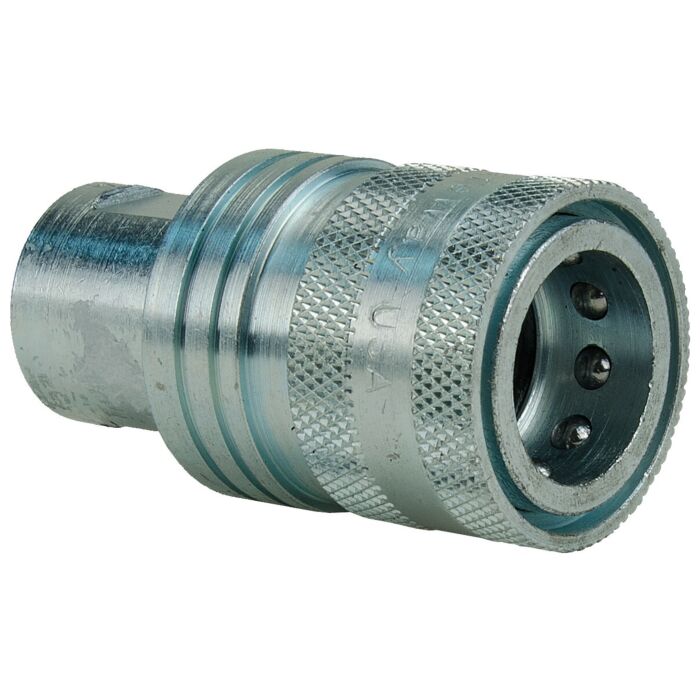

1/2 in NPT 2.682 in Quick Disconnect Hydraulic Coupling
SKU: S45X4 | Location: Aisle 06, Section W1
$22.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
6 In stock
- Buy 6 for $20.69 each and save 10%
Features
Specifications
SafeWay’s S40 Series is a general purpose, double shutoff fluid transfer quick coupling available with either a rugged ball valve or leak-free, high flow poppet valve. The S40-4 was the first two-way (double acting) sleeve quick coupling, introduced by SafeWay in 1969 as our first product. The S40 Series is widely used wherever the ease and convenience of one-hand connection or disconnection is desired. It is original equipment on a wide variety of agricultural and mobile equipment.
- 1/2 in body size meets dimensional requirements of ISO 5675
- Two-way (double acting) sleeve of the S40 Series allows one-hand connect or disconnect when the coupling is clamp or bulkhead mounted
- Available in body sizes from 1/4 in to 1/2", in a variety of thread sizes and styles
- Double shut-off design available with either a rugged ball valve or leak-free, high flow poppet valve
- Reliable and durable ball locking mechanism provides smooth operation time after time
- Critical parts are hardened for long service life
- Two-way sleeve design allows implement break-away when the coupling is clamp or bulkhead mounted
- Interchangeable half-for-half with parker/pioneer 4200 Series
- All poppet valve models are 100% leak tested before leaving the factory
- Steel products feature RoHS Compliant plated surfaces (silver appearance)
- Dust plugs and dust caps available
- Heavy-duty double break-away clamp available
- Heavy-duty snap-rings for bulkhead mounting available
- Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.r2, Hydraulic fluid power - Quick action couplings - Test methods
Brand | Safeway |
---|---|
Store Location (Lititz, PA) | Aisle 06, Section W1 |
Package Length (in) | 2.40" |
Package Width (in) | 1.60" |
Package Height (in) | 1.00" |
Manufacturer Part Number | S45-4 |
Type | Quick Disconnect |
Hose ID | 1/2 in |
Connection Type | NPT |
Overall Length | 2.682 in |
Dimension Drop | 1.059 in |
Pressure Rating | 3000 psi |
Material | Steel |
Temperature Rating | -40 to 250 deg F |
