Safeway

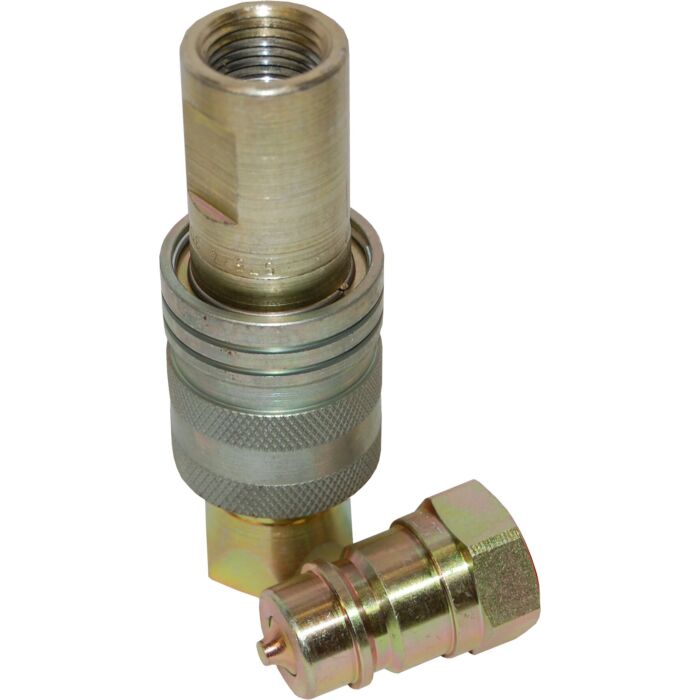

4.34 in 1/2 in Hydraulic Quick Coupling Set
SKU: S70X4
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.99
Features
Specifications
SafeWay’s S70 Series offers unique internal valving, combined with SafeWay’s two-way sleeve feature, allowing one-hand connection under full system pressure. The body (coupling) half can be mated to either a ball valve or poppet valve ISO male tip (nipple). The S70 Series is used primarily with agricultural equipment. It is original equipment on full size tractors and front-end loaders. use when connection and disconnection-under-pressure, without the use of tools, is desirable.
- 1/2 in body size couplers and male tips meet ISO 5675 interchangeability and performance requirements
- Available in 1/2 in body size, in a variety of thread sizes and styles
- After connection, the hydraulic circuit automatically opens when the hydraulic system is operated
- Two-way sleeve design allows one-hand connection and break-away when clamp or bulkhead mounted. clamp and snap-rings available
- Easy one-hand connection to a clamp or bulkhead mounted coupler while male tip and female body half are both - or either - under pressure
- All poppet versions are 100% leak tested
- Dust plugs and dust caps available
- Critical parts are hardened for long service life
- Steel products feature RoHS Compliant plated surfaces (silver appearance)
- May be used with either an open center or closed center hydraulic system that has a control valve
- Interchangeable half-for-half with the parker/pioneer 8200 Series
- Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.r2, Hydraulic fluid power - Quick action couplings - Test methods
| Brand | Safeway |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section W1 |
| Package Length (in) | 6.00" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | S70-4 |
| Outside Diameter | 1-1/2 in |
| Overall Length | 4.34 in |
| Hub Size | 1/2 in |
| Temperature Rating | -40 to 250 deg F |
