WATTS

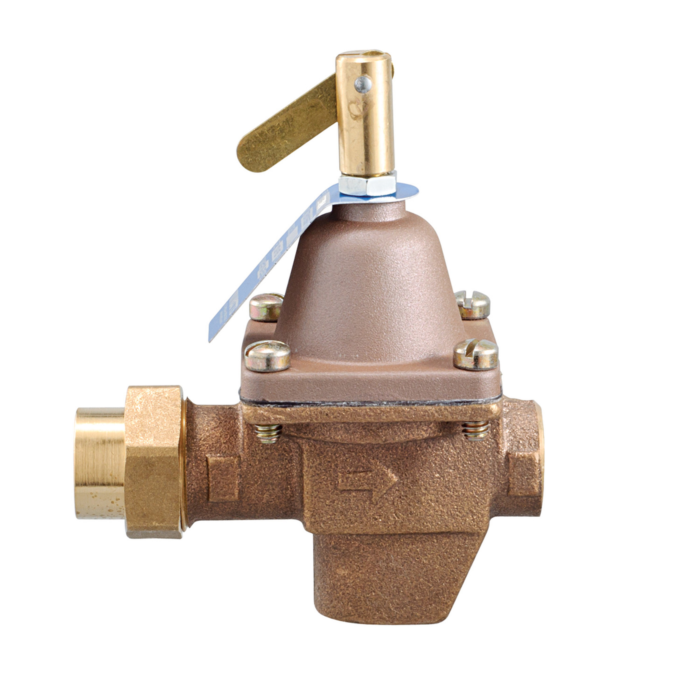

1/2 IN Bronze High Capacity Water Feed Regulator with Union Threaded Inlet Connection
SKU: T1156F
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$119.99
Features
Specifications
Downloads
This 1/2 inch high capacity feed water pressure regulator is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of a bronze body with union threaded inlet and NPT threaded outlet connections, a tight seating check valve, purge lever for manual purging, and a stainless steel strainer. It has high capacity performance and a simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems. The maximum pressure is 100 psi (6.9 bar).
- CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Tight seating check valve
- Purge lever
- High capacity
- Stainless steel strainer
| Brand | WATTS |
|---|---|
| UPC | 098268023060 |
| Store Location (Lititz, PA) | Aisle 04, Section D4 |
| Package Length (in) | 4.40" |
| Package Width (in) | 2.80" |
| Package Height (in) | 6.20" |
| Manufacturer Part Number | 0386421 |
| Country of Origin | United States |
| Series | 1156F |
| Brand Name | Watts |
| Body Material | Bronze |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Union Male Threaded |
| Inlet Thread Type | NPT |
| Adjustable Reduced Pressure Range | 0.7 to 1.7 bar |
| Valve Style | Standard |
| Maximum Working Pressure | 6.8 bar |
| Minimum Temperature | 0.5°C |
| Strainer | Yes |
| Application | Commercial and Residential |
| Maximum Operating Temperature | 100.0°C |
| Strainer Material | Stainless Steel |
| Corrosion Resistant Coating | No |
| Gauge Option | No Gauge |
| Standard Reduced Pressure Setting | 15 PSI |
| Thermal Expansion Bypass | No |
