WATTS

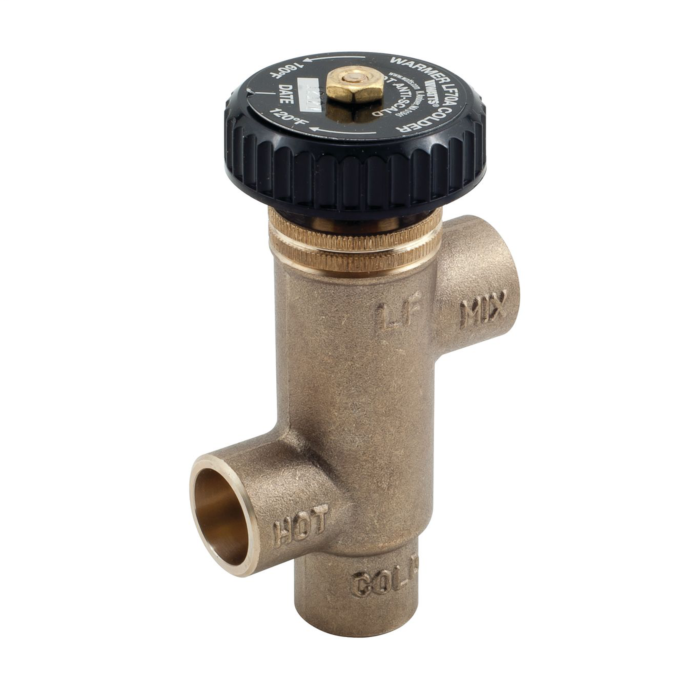

1/2 In Lead Free Hot Water Extender Mixing Valve, Solder Connections
SKU: LF70AF | Location: Aisle 04, Section D4
$134.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Downloads
This 1/2 inch hot water extender mixing valve is designed for domestic water supply systems and recommended for tankless heater, water heater, and solar applications installed at or near the boiler or hot water heater. It consists of a lead free brass body, sweat connections, thermostat, stainless steel springs, and dial adjustment cap. The hydraulically operated thermostat opens a spring loaded check in the cold water inlet which allows cold and hot water to mix and can be replaced as a unit. The temperature range is 120 to 160 degrees F (49 to 71 degrees C).
- Solder connections
- Dial adjustment cap
- Thermostat assembly is easy to maintain, remove and replace
- Lead free brass body construction
| Brand | WATTS |
|---|---|
| UPC | 098268576870 |
| Store Location (Lititz, PA) | Aisle 04, Section D4 |
| Package Length (in) | 6.60" |
| Package Width (in) | 3.80" |
| Package Height (in) | 2.00" |
| Manufacturer Part Number | EDP #0960153 |
| Body Finish | Rough Bronze |
| Body Material | Lead Free Brass |
| Brand Name | Watts |
| Capacity | 5.5 GPM at 10 PSI |
| Cold Inlet Temperature Range | 40 to 85 degree F |
| Cold Water Bypass | No |
| Cold Water Inlet Connection Size | 1/2 IN |
| Cold Water Inlet Connection Type | Socket |
| Dial Thermometer | No |
| Factory Set Temperature-Fahrenheit | 9999 |
| Field Adjustable Range | 120 to 160 degree F |
| Flow Rate | 2 to 5.5 GPM |
| GDS Status | Registered |
| Hot Inlet Temperature Range | 120 to 160 degree F |
| Hot Water Inlet Connection Size | 1/2 IN |
| Hot Water Inlet Connection Type | Socket |
| Lead Free | Yes |
| Maximum Flow Rate | 5.5 GPM |
| Maximum Pressure Differential | 25 percent |
| Maximum Temperature-Fahrenheit | 210 |
| Maximum Working Pressure-PSI | 150 |
| Minimum Differential Temperature-Fahrenheit | 5 |
| Minimum Flow Rate | 2 GPM |
| Minimum Static Pressure-PSI | 30 |
| Model Number | LF70A-F 1/2 R |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Socket |
| Part Number | 0960153 |
| Pressure Drop | 10 PSI |
| Series | LF70A |
| Temperature Adjustment Range | 120 to 160 degree F |
| Vacuum Breaker | No |
