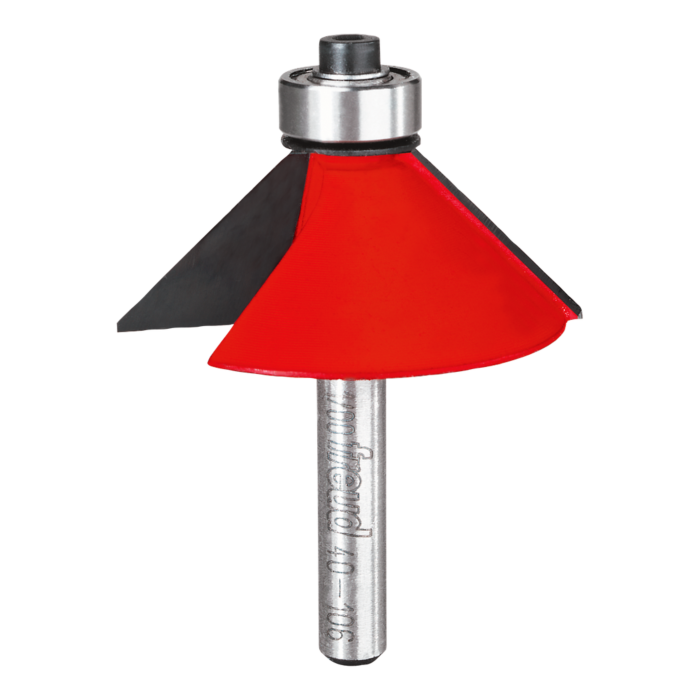

1-3/4" (Dia.) Chamfer Bit
SKU: F40106
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$42.99
Features
Specifications
The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery, and easing edges. Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites; use in hand-held or table-mounted portable routers.
- For multiple-sided projects
- joinery
- and easing edges
- Veneered Plywood
- Hardwoods
- Softwoods
- Composites
- Chamfer size easily adjusts by changing the height of the bit or moving the fence
- Cuts all composition materials, plywood, hardwood, and softwood
- Use on hand-held and table-mounted routers
- Freud Perma-SHIELD® Coating
| Brand | Freud Tools |
|---|---|
| UPC | 008925380955 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 4.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 2.40" |
| Manufacturer Part Number | 40-106 |
| Angle (d) | 45° |
| Bearing Dia. (B) | 1/2" |
| Carbide Height (h) | 5/8" |
| Overall Dia. (D) | 1-3/4" |
| Overall Length (H) | 2-3/16" |
| Number of Cutters | 2 |
| Shank Dia. (A) | 1/4" |
