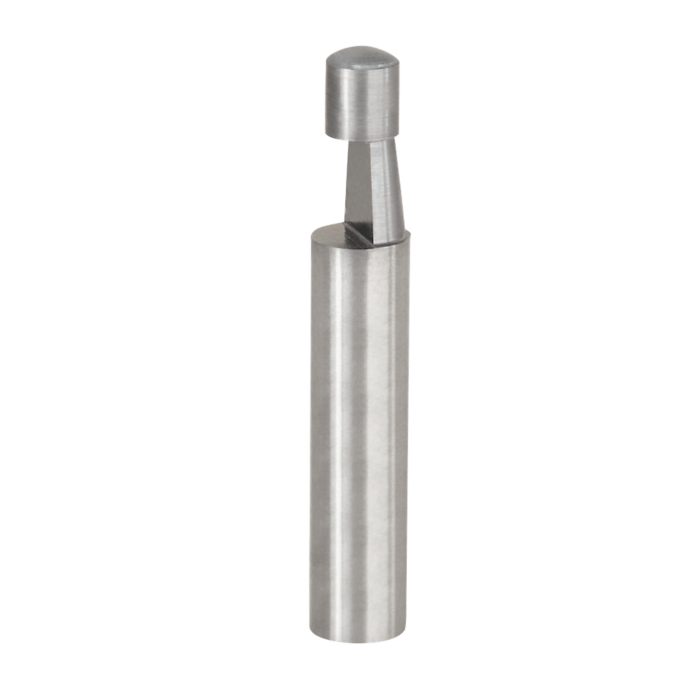

1/4" (Dia.) Bevel Trim Bit
SKU: F66100
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
Features
Specifications
Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
- Rout a clean, smooth edge of laminates with little of no time-consuming filing
- Cuts all plastic laminates
- 41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
- Use in hand-held or table-mounted routers and laminate trimmers
- Routing a clean
- finished edge on plastic laminates
- Melamine/Laminate
| Brand | Freud Tools |
|---|---|
| UPC | 008925381280 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 4.90" |
| Package Width (in) | 1.65" |
| Package Height (in) | 1.65" |
| Manufacturer Part Number | 66-100 |
| Angle (d) | 7° |
| Bearing Dia. (B) | 3/16" |
| Carbide Height (h) | 1/4" |
| Overall Dia. (D) | 1/4" |
| Overall Length (H) | 1-1/2" |
| Number of Cutters | 2 |
| Shank Dia. (A) | 1/4" |
