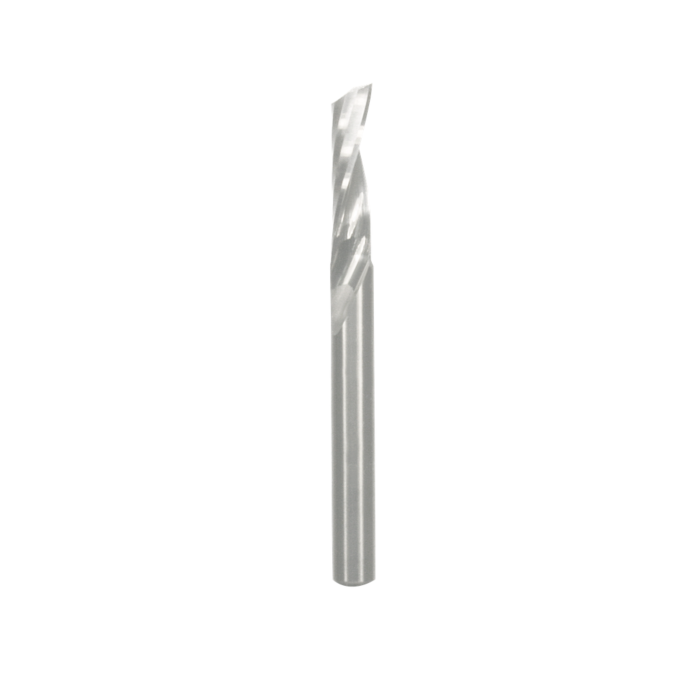

1/4" (Dia.) O-Flute Up Spiral Bit
SKU: F75025
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$69.99
Features
Specifications
Freud O-Flute bits are designed for smooth finishes on solid surface and plastics such as ABS, UHMW, acrylic, nylon and polycarbonate. The up shear design provides fast chip clearance, and delivers the best cut quality on the bottom surface. The O-Flute design delivers cooler cuts in plastic to avoid melting. Use these bits in any CNC, hand-held or table-mounted router. Also a good choice for fine wood cuts. Always make multiple passes for deep cuts in hard materials. Specialty designed for Soft Plastic Material (UHMW, ABS, PC, PS, PP, PET, HDPE, HIPS)
- Solid Surface
- Plastics
- Smooth cuts in solid surface and plastics
- Up Shear design clears chips fast, delivers cleanest cut on bottom surface
- O-Flute design cuts cooler, avoids melting
- Use in CNC, hand-held and table-mounted routers
- Freud Premier Solid Carbide
- Clean
- melt-free cuts in a wide variety of plastics with fast chip clearance
| Brand | Freud Tools |
|---|---|
| UPC | 008925107866 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 3.80" |
| Package Width (in) | 0.85" |
| Package Height (in) | 0.85" |
| Manufacturer Part Number | 75-025 |
| Carbide Height (h) | 7/8" |
| Overall Dia. (D) | 1/4" |
| Overall Length (H) | 2-1/2" |
| Number of Cutters | 1 |
| Shank Dia. (A) | 1/4" |
