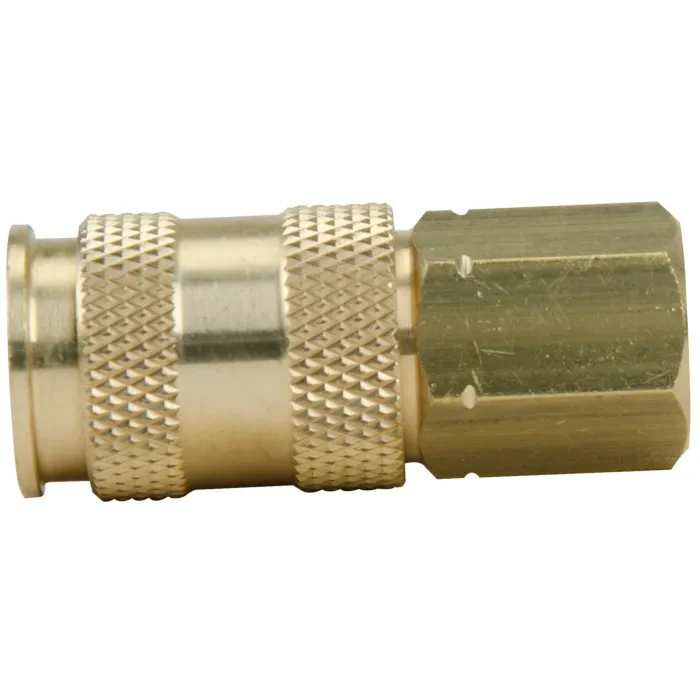

HIGHFLOWPRO® 1/4 in FNPT Brass V-Style Coupler
SKU: MS764
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$9.99
Features
Specifications
1/4" FNPT HIGHFLOWPRO® V-Style couplers will accept A, M and V-Style plugs, however, to retain maximum air flow use V-Style plugs. Sleeve release is a push type and is easy to use; simply push plug into coupler to engage, pull sleeve back to remove. Perfect for high volume, low pressure applications. V-Style couplers have a 1/4" basic flow size and a maximum pressure of 300 PSI.
| Brand | Milton |
|---|---|
| UPC | 030937007643 |
| Store Location (Lititz, PA) | Aisle 30, Section N5 |
| Package Length (in) | 3.40" |
| Package Width (in) | 4.40" |
| Package Height (in) | 0.80" |
| Manufacturer Part Number | S-764 |
| Series | HIGHFLOWPRO® |
| Thread Type | FNPT |
| Thread Size | 1/4 in |
| Pressure Rating | 300 psi |
| Flow Rate | 74 scfm |
| Material | Brass |
| Temperature Rating | 250 deg F |
