WATTS

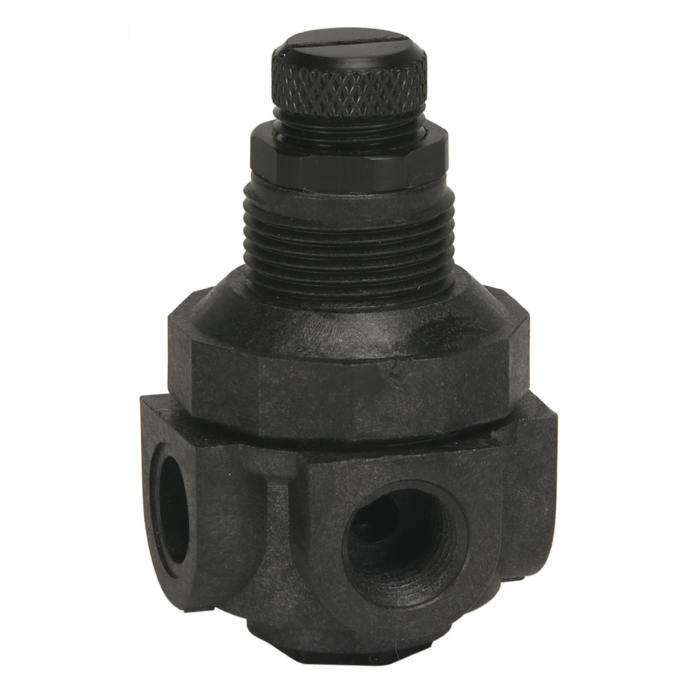

1/4 In Miniature Plastic Water Pressure Regulator, Npt Female, Acetal Plug, 0-25 psi, Gauge Port/90Degree Inlet To Outlet
SKU: P60M1414 | Location: Aisle 08, Section I3
$74.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
4 In stock
Features
Specifications
Downloads
This 1/4 inch miniature water pressure regulator is compact and lightweight with a high flow capacity. It is used in general purpose and OEM applications where a small economical package is required. It is also suitable for deionized water applications. It has a balanced piston design for applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction, four NPT female connections, rubber disc, diaphragm, two NPT pipe plugs, seals of FDA grade elastomers, and stainless steel internal metal components. The plugs allow configurations of straight through to outlet, 90 degree to outlet, or use of a gauge. The reduced pressure range is 0 to 25 psi (0 to 1.76 bar) and the temperature range is 33 to 150 degrees F (0.5 to 66 degrees C).
- Corrosion resistant thermoplastic body
- Temperature range is 33 F to 150 degrees F (0.5 C to 66 degrees C)
- Compact design and lightweight construction
- Maximum Inlet pressure is 300 psi (21 bar)
- All internal metal components in contact with fluid are of 300 series stainless steel
- Bottom clean out plug for service
- All internal rubber components such as disc, diaphragm and seals are all FDA grade elastomers
Brand | WATTS |
---|---|
UPC | 098268329636 |
Store Location (Lititz, PA) | Aisle 08, Section I3 |
Package Length (in) | 1.60" |
Package Width (in) | 1.60" |
Package Height (in) | 3.20" |
Manufacturer Part Number | 0354606 |
Adjustable Reduced Pressure Range | 0 to 25 |
Adjustable Reduced Pressure Range-BAR | 0 to 1.72 |
Body Material | Plastic |
Brand Name | Watts |
Corrosion Resistant Coating | Yes |
Disc Material | Buna-N |
EAN | 098268329636 |
Gauge Option | No Gauge |
Inlet Connection Size | 1/4 IN |
Inlet Connection Type | Female Threaded |
Inlet Thread Type | FPT |
Lead Free | Yes |
Maximum Operating Temperature-Fahrenheit | 150 |
Maximum Working Pressure-BAR | 20.70 |
Maximum Working Pressure-PSI | 300 |
Minimum Temperature - Celsius | 0.50 |
Minimum Temperature-Fahrenheit | 33 |
Outlet Connection Size | 1/4 IN |
Outlet Connection Type | Female Threaded |
Outlet Thread Type | FPT |
Part Number | 0354590 |
Series | P60 |
Strainer | Yes |
Thermal Expansion Bypass | No |
Type | Kit |
Valve Style | Standard |
