Vermont American

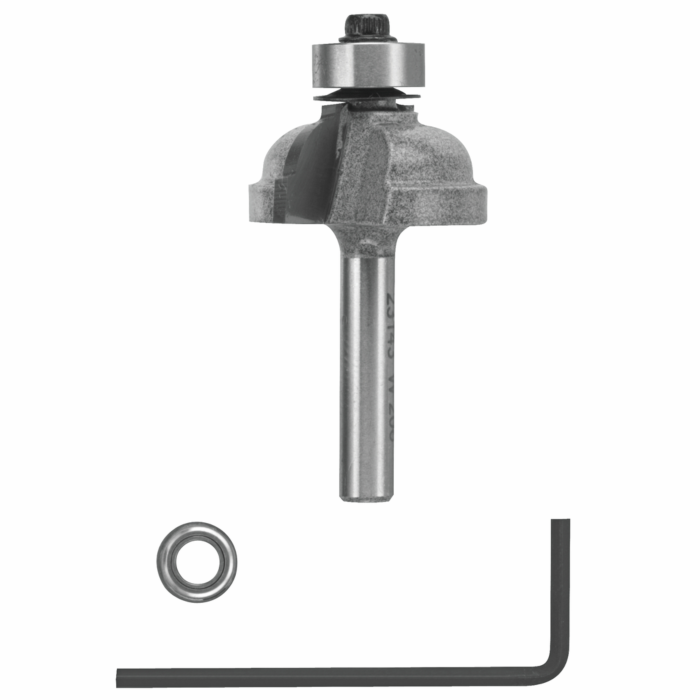

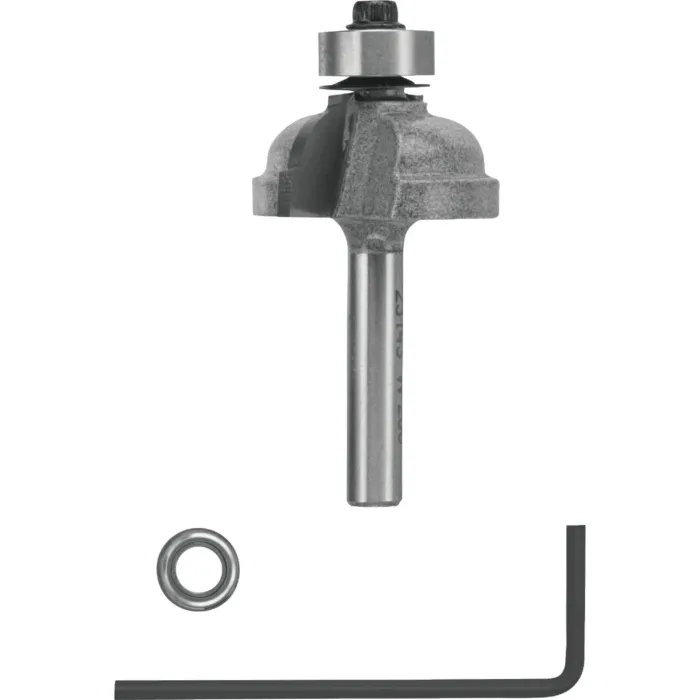

1/4 In. x 17/32 In. Carbide Tipped Cove and Fillet Bit
SKU: V23143
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$18.49
Features
Specifications
High quality tungsten carbide tips provide superior wear resistance and sharp edges. Cove and fillet bit creates attractive decorative edging that gives a unique finish to the work piece. Heat treated shanks and bodies provide added durability.
- Used for decorative edging and period furniture, and smooth radius of cove cut is attractively accented with a fillet
- Additional 3/8 In. bearing (included) can be used to create a second fillet for an additional profile
- Control cut design helps minimize kickback
- Micrograin carbide tips provide superior wear resistance and long life
- Compact ball-bearing pilot guides bit along edge of material
- Includes plastic storage case
| Brand | Vermont American |
|---|---|
| UPC | 045325738238 |
| Store Location (Lititz, PA) | Aisle 21, Section I5 |
| Package Length (in) | 3.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | 23143 |
| A. Overall Diameter | 1-1/8" |
| B. Cutting Edge Length | 17/32" |
| Bearing Diameter | 1/2" |
| Bearing Included | Yes |
| Bit Material | Carbide Tipped |
| C. Shank Diameter | 1/4" |
| Case Included | No |
| Color / Finish | grey |
| Country of Origin | China |
| Cut Diameter (in) | 1 |
| D. Overall Length | 2-3/16" |
| Flute Length (in) | 0.5312 |
| Forming Router Bit Type | Cove |
| GTIN | 00045325738238 |
| Number of Flutes | 2 |
| Overall Length (in) | 2.1875 |
| R. Radius | 1/4" |
| Set / Individual | Individual |
| Shank Diameter | 1/4 in |
| Shank Length (in) | 1.6563 |
