Dixon

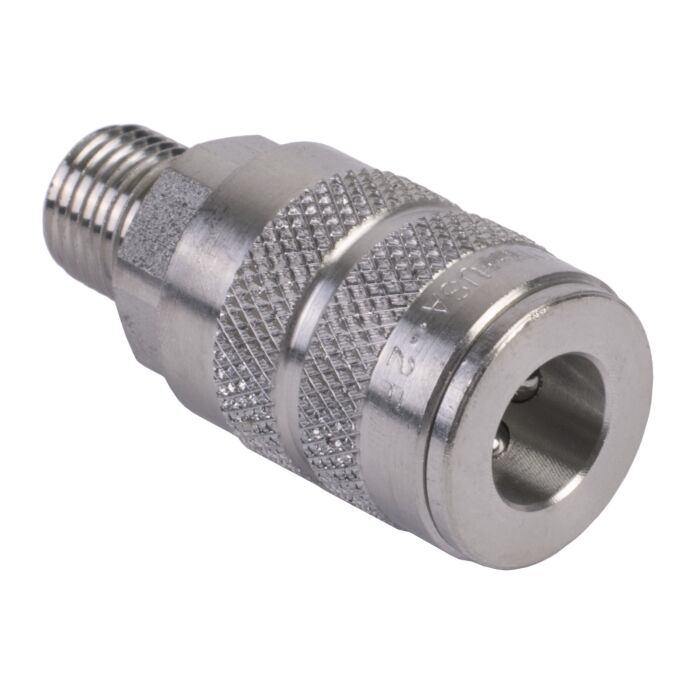

F Series 1/4-18 NPTF 303 SS Hose Coupler
SKU: 2FM2S
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$41.99
Features
Specifications
Hose Coupler, Series: F Series, 1/4 in Fitting, NPTF, 1/4-18, 500 psi, 303 Stainless Steel, -40 to 121 deg C, 0.88 in Outside Dia, 2.04 in L, 3/4 in Hex
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel sleeve and steel tubular valve
- Foster 3, 4, 5 and 6 Series
- Parker® 20 Series manual interchange
| Brand | Dixon |
|---|---|
| Store Location (Lititz, PA) | Aisle 30, Section N5 |
| Series | F Series |
| Fitting Size | 1/4 in |
| Thread Type | NPTF |
| Thread Size | 1/4-18 |
| Pressure Rating | 500 psi |
| Material | 303 Stainless Steel |
| Temperature Rating | -40 to 121 deg C |
| Outside Diameter | 0.88 in |
| Dimensions | 2.04 in L |
| Hex | 3/4 in |
