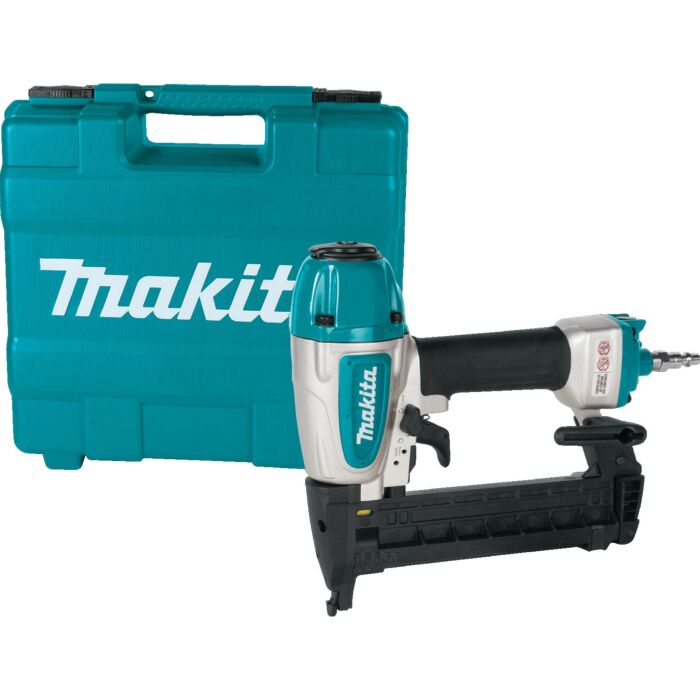

The Makita 1/4" Narrow Crown Stapler (model AT638A) combines ease-of-use and powerful performance in a compact size. The AT638A has a bottom-loading magazine that accepts 18 ga. staples sized 1/2" to 1-1/2". The staple reload indicator window alerts the user when to reload nails, and the contact arm and trigger are used together for controlled firing. The AT638A has a compact size and weighs only 2.7 lbs. for all-day use. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a multi-directional exhaust port that directs exhaust air away from the user, a built-in air duster that provides convenient air flow to clear your workspace, and a 2-mode selector switch offering quick control over nailing operation.
- Ideal for cabinets, shelving, insulation, lattice work, fencing and other woodworking applications
- Multi-directional exhaust port directs exhaust air away from operator
- Safety Glasses
- POWER - Efficient motor design offers leading power performance
- Reversible belt hook allows the tool to remain close
- "Tool-less" depth adjustment for more precise stapling
- Staple reload indicator window alerts the operator when to reload staples
- "Tool-less" depth adjustment for more precise flush and countersink stapling
- Housing bumpers protect tool and work surface
- Integrated rubber soft grip for operator comfort
- 2-mode selector switch allows operator to select sequential or contact stapling operation
- CONTROL - 2-mode selector switch for control over stapling operation
- Built-in air duster provides convenient air flow to clear work surface
- Efficient motor design offers leading power performance
- Includes two removable no-mar tips; convenient on tool storage
- Aluminum body for durability with less weight
- Minimum recommended air delivery of 1.7 SCFM @ 90PSI
- 2 No-Mar Tip
- Air Fitting
- CONVENIENCE - Reversible belt hook allows the tool to remain close
- Bottom-loading magazine holds up to 100 staples for maximum efficiency
- Tool Case
- Narrow nose design allows easy stapling access in confined areas
- Pneumatic Nailer Oil (181434-7)
- Powerful motor drives standard 18 gauge, 1/4" narrow crown staples from 1/2" to 1-1/2" in length
- EFFICIENCY - Bottom-loading magazine allows user to quickly load staples (1/4" crown from 1/2" to 1-1/2" long)
- INCLUDES - Pneumatic nailer oil, safety glasses, air fitting, no-mar tips (2), tool case
- 3-year limited warranty
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381822411 |
| Store Location (Lititz, PA) | Aisle 28, Section M4 |
| Package Length (in) | 2.20" |
| Package Width (in) | 7.40" |
| Package Height (in) | 7.40" |
| Manufacturer Part Number | AT638A |
| Country of Origin | China |
| Net Weight | 2.7 lbs. |
| Air Fitting Included | Yes |
| Leg Length | 1/2" to 1-1/2" |
| Industrial Style Fitting Included | 1/4" NPT x 1/4" |
| Inlet Size | 1/4" NPT |
| Maximum Magazine Capacity | 100 |
| Power Type | Pneumatic |
| Minimum Recommended Air Delivery | 1.7 SCFM @ 90 PSI |
| Shipping Weight | 6.7 lbs. |
| Operating Air Pressure (Bar) | 4.9 - 8.3 |
| Dimensions (LxWxH) | 9" x 2-15/16" x 9-7/8" |
| Crown | 1/4" |
| UPC Code | 088381-822411 |
| Gauge | 18 |
| Fastening category | Stapler |
| Operating Air Pressure (PSI) | 70 - 120 |
