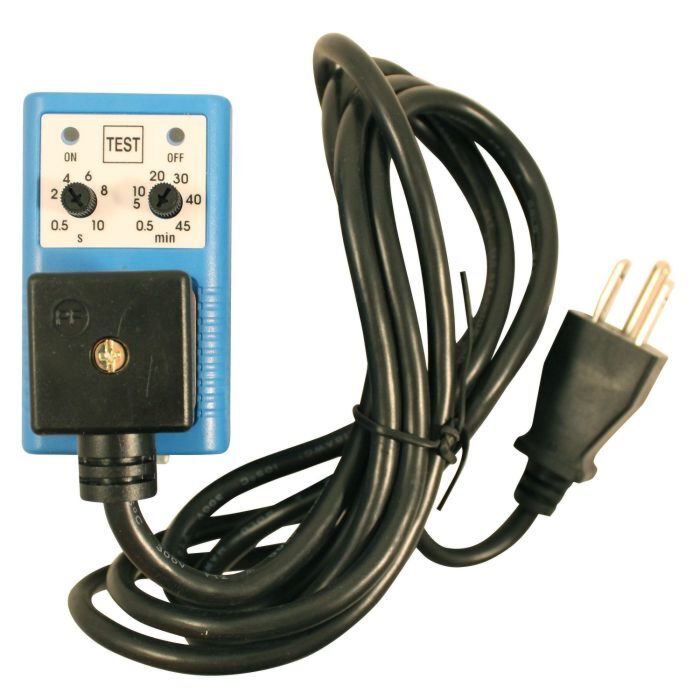

This compressor tank drain is electronically adjustable to drain compressor tank automatically in order for it to deliver dry air. The two 2 way direct acting 1/4 in FNPT valves are made of forged brass and have a manual test switch. Mountable in any position, this tank drain has a 6' 1/2 in power cord and offers voltage of 115 volts / 1 phase / 60 Hz. Offers a working pressure range of 0 to 230 PSI.
- Discharge interval adjustable from 0.5 to 45 minutes
- Discharge duration adjustable from 0.5 to 10 seconds
- Drains compressor tank automatically
- Can be mounted in any position
Brand | Milton |
---|---|
UPC | 030937308436 |
Store Location (Lititz, PA) | Aisle 05, Section M3 |
Package Length (in) | 2.60" |
Package Width (in) | 4.00" |
Package Height (in) | 7.40" |
Manufacturer Part Number | 1139-1 |
Port Size | 1/4 in |
Connection Type | FNPT |
Pressure Rating | 0 to 230 psi |
Temperature Rating | 40 to 140 deg F |
Overall Length | 3-1/2 in |
Overall Width | 3 in |
Overall Height | 1-3/4 in |
