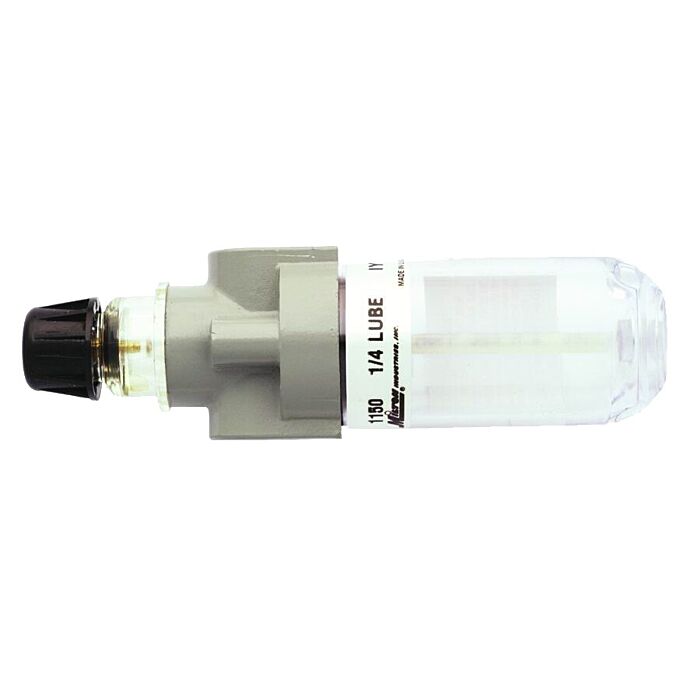

1/4 in NPT 16 scfm Mini Lubricator
SKU: MS1150
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$64.99
Features
Specifications
1/4" NPT Mini precision lubricator is a visible drip type lubricator with an external adjustment screw. Unit is designed for low air flow applications where space is limited. Bypass system allows full air flow with minimum pressure drop and assures proper air/water mixture over full operating range. Requires approximately 1 SCFM of air flow to deliver oil. Includes polycarbonate bowl and two 1/8" NPT gage ports.
- Designed for low air flow applications where space is a consideration
| Brand | Milton |
|---|---|
| UPC | 030937011503 |
| Store Location (Lititz, PA) | Aisle 30, Section N5 |
| Package Length (in) | 3.80" |
| Package Width (in) | 8.00" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | S-1150 |
| Port Size | 1/4 in |
| Connection Type | NPT |
| Flow Rate | 16 scfm |
| Pressure Rating | 150 psi |
| Oil Capacity | 1 oz |
| Body Material | Polycarbonate |
| Overall Length | 5 in |
| Overall Width | 1-1/2 in |
| Overall Height | 1-1/2 in |
