Dixon

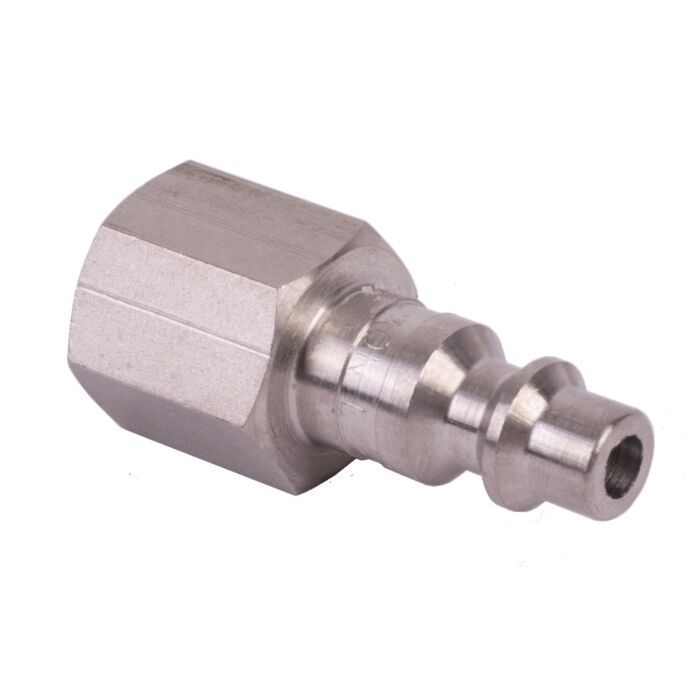

DF Series 1.66 in -40 to 250 deg F 303 SS Female Coupler Plug
SKU: D2F2S
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$12.99
Features
Specifications
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
- Pressure Ratings: brass coupler / steel plug: 500 PSI, brass coupler / brass plug: 300 PSI, steel coupler / steel plug: 500 PSI, 303 stainless steel coupler / 303 stainless steel plug: 500 PSI
- Temperature Range: -40 degree F to 250 degree F (-40 degree C to 121 degree C)
- Interchanges with other Industrial Interchange designs
- Interchanges with the MIL-C-4109, A-A 59439 and ISO6150B standards
| Brand | Dixon |
|---|---|
| Store Location (Lititz, PA) | Aisle 30, Section N5 |
| Package Length (in) | 1.20" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.40" |
| Type | Female |
| Series | DF Series |
| Length | 1.66 in |
| Temperature Rating | -40 to 250 deg F |
| Material | 303 Stainless Steel |
| Finish | Zinc Plated |
| Color | Silver |
| Maximum OD | 0.79 in |
| Thread | NPTF |
| Body Size | 1/4 in |
| Thread Size | 1/4 in |
| Hex | 11/16 in |
