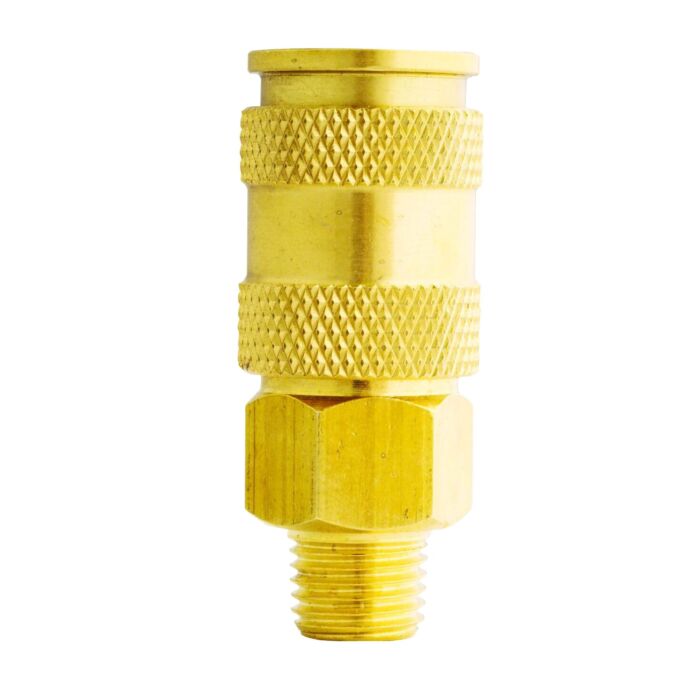

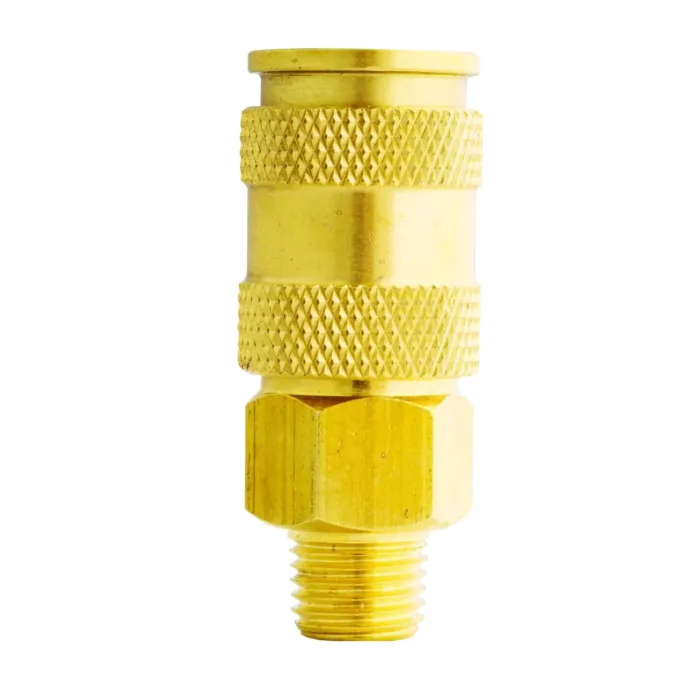

Hose Coupler, A-Style, MNPT, 1/4 in, 300 psi, Steel, Buna-N, 1/4 in Basic Flow Size
- HIGHFLOWPRO®: 1/4" Male NPT. 1/4" Basic Flow Size. 300 PSI Max Inlet Pressure. 74 SCFM. 250 Degree F Max Temp
- COMPATIBLE: Will also accept both M-Style® and A-Style plugs. V-style is recommended to retain maximum flow
- V-STYLE: Milton® V-Style, ColorFit® V-Style, + competitor V couplers/plugs are all compatible!
- IDEAL: For High Volume, Low Pressure pneumatic applications
- SLEEVE RELEASE: PUSH to connect to plug, PULL sleeve back to remove. Buna-N seals
Brand | Milton |
---|---|
UPC | 030937311825 |
Store Location (Lititz, PA) | Aisle 30, Section N4 |
Package Length (in) | 0.80" |
Package Width (in) | 3.60" |
Package Height (in) | 3.60" |
Manufacturer Part Number | S-765 |
Type | A-Style |
Thread Type | MNPT |
Thread Size | 1/4 in |
Pressure Rating | 300 psi |
Material | Steel |
Finish | Buna-N |
Basic Flow Size | 1/4 in |
