Features
Specifications

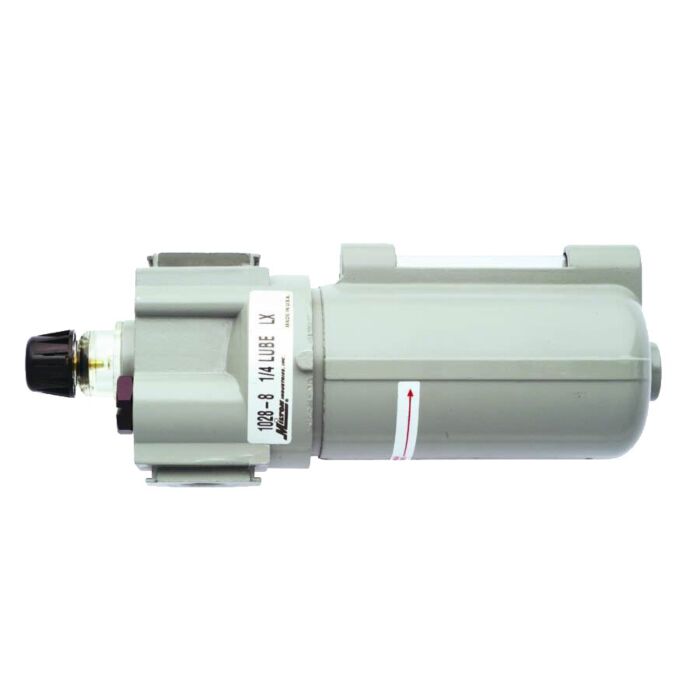

This 1/4" NPT lubricator metal bowl is the drip style, which allows precise settings for trouble-free protection. The adjusting knob can be removed in order to prevent tampering and the sight glass dome allows observation for instant drip rate adjustment. The 6-ounce metal bowl may be filled without shutting down line pressure, delivering oil at an air flow as low as 2 SCFM. The lubricator is designed to provide oil to air tools that require oil for operation. Maximum pressure of 200 PSI and 16 SCFM.
- 1/4" national pipe thread
- Maximum pressure of 200 pounds per square inch
- Maximum of 16 standard cubic feet per minute at 100 pounds per square inch
- Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
Brand | Milton |
---|---|
UPC | 030937102881 |
Store Location (Lititz, PA) | Aisle 05, Section M3 |
Package Length (in) | 2.40" |
Package Width (in) | 7.80" |
Package Height (in) | 2.80" |
Manufacturer Part Number | 1028-8 |
Diameter | 1/4 in NPT |
Overall Length | 7 in |
Overall Width | 2-3/4 in |
Overall Height | 2.6875 in |
Maximum Pressure | 200 psi |
