Features
Specifications

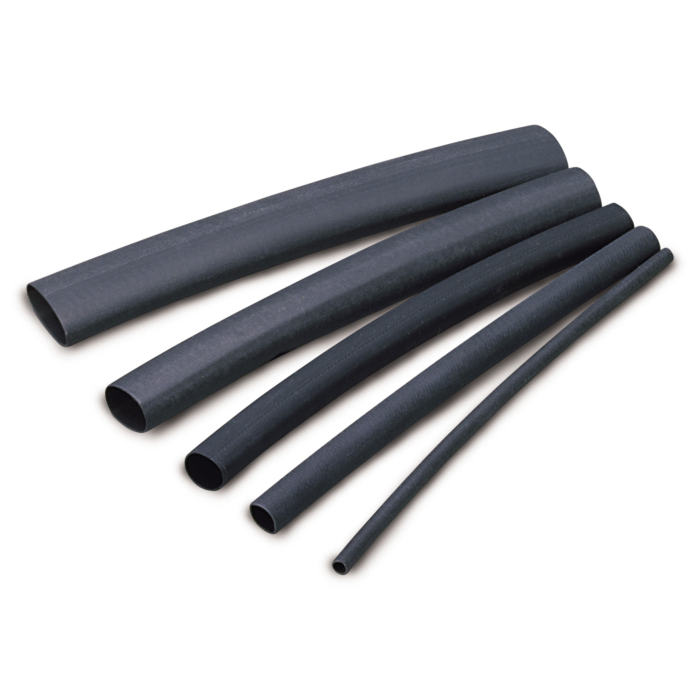

Thin wall heat-shrink tubing is great for cable insulation, marking or bundling, with superior mechanical, abrasion and moisture protection. Multi-purpose uses may also include repairing cords and covering tool handles. Also good for strong rope loops and neat ends. It resists common fluids and solvents. Meets UL 224, 125 degrees Celsius: CSA C22.2 No3 198.1, 125 degrees C; MIL-DTL-23053/5, Class 1 and 2, AMS 3636 and 3637; DEF STAN 59-79, Issue 3 Type 2a. Continuous operating temperature: -55 degrees Celsius (-67 degrees Fahrenheit) to 135 degrees Celsius (275 degrees Fahrenheit). Shrink temperature: 120 degrees Celsius (250 degrees Fahrenheit) to 250 degrees Celsius (480 degrees Fahrenheit). 600 V/Mil Dielectric strength
- Flame retardant
- 2:1 shrink ratio. Before 1/8" - After 1/16"
- Conductor Gauge AWG: 22, 20, 18
- 7 pieces per bag
Brand | Gardner Bender |
---|---|
UPC | 032076561253 |
Store Location (Lititz, PA) | Aisle 08 End Cap |
Package Length (in) | 5.80" |
Package Width (in) | 2.80" |
Package Height (in) | 0.20" |
Manufacturer Part Number | HST-125 |
Out of Package Length/Depth (in) | 4.000 |
Each in Package Height (in) * | 0.100 |
Each in Package Width (in) ° | 2.200 |
Each in Package Length/Depth (in) * | 5.200 |
Each in Package Weight (oz) ° | 0.310 |
