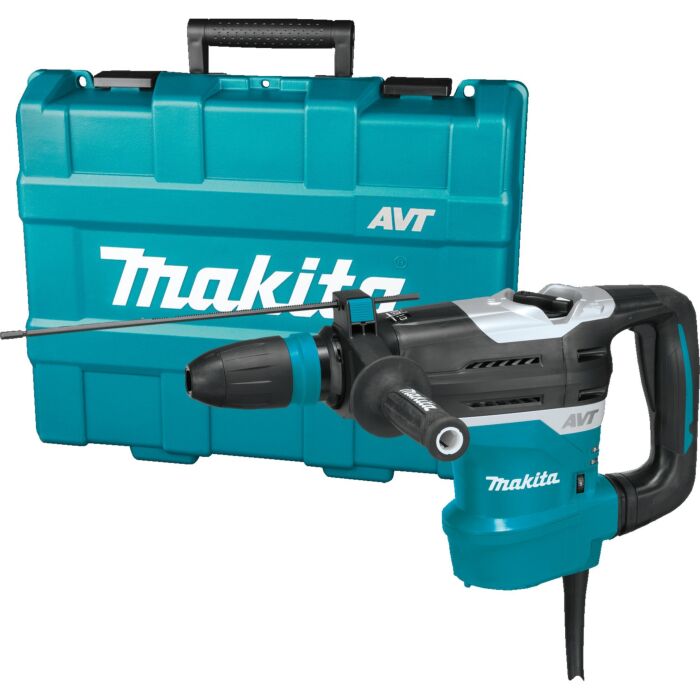

1-9/16" SDS-MAX AVT® Rotary Hammer

The 1-9/16” AVT® Rotary Hammer (model HR4013C) has 45% less vibration and 20% more impact energy than the previous model. It is engineered with enhanced Anti-Vibration Technology (AVT®), a synchronized three-component system for significantly less vibration. The result of the enhanced AVT® is a category-leading vibration rating of 5m/s². The powerful 11 AMP motor delivers 8.4 ft. lbs. (11.4 Joules) of impact energy, 20% more than the previous model for faster drilling. An added feature is the option of lock-on or trigger-activated in the “chipping only” mode, with a push button start/stop control for more convenient operation. The HR4013C is engineered for a range of concrete applications including drilling/coring through-holes for pipes, setting larger anchors, securing tilt-wall supports, small chipping applications, and more. It is ideal for a range of trades including masons, concrete contractors, demolition contractors, plumbers, electricians, sprinkler installers, and general contractors seeking a best-in-class rotary hammer.

• Advanced AVT® includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
• Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
• Side Handle Assembly (123138-5)
• 24 bit angle settings allow the bit to be set at different positions for operating convenience
• Advanced Anti-Vibration Technology (AVT®) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
• Electronic Controller is a feature package that provides constant speed control, soft start, soft no-load and variable speed
• COMFORT - Air actuated counterbalance actively reduces vibration
• Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
• PERFORMANCE - Vibration absorbing housing moves independently of the motor and drive mechanism
• Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
• Hammer Bit Grease (194683-7)
• Advanced AVT® is an air actuated counterbalance, vibration absorving housing and impact bolt damper spring that more effectively reduces vibration
• Advanced AVT® includes a vibration absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
• Tool Case (141977-1)
• Automatic brush cut-off protects commutator from damage for longer tool life
• "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
• ERGONOMICS - Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations
• Variable speed control dial enables user to match the speed to the application for greater versatility
• Depth Gauge (331955-1)
• L.E.D. power light indicates switch failure or cord damage
• Soft start suppresses start-up reaction for more precision and better accuracy
• CONVENIENCE - Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control
• Advanced AVT® includes an air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
• D-Handle Assembly, HR4013C (196792-8)
• 2-mode operation for "Chipping Only" or "Hammering with Rotation"
• Includes a 16.4 ft. power cord for user convenience
• One-touch sliding chuck for quick bit changes
• INCLUDES - Side handle, D-handle, depth rod, grease and case
• Powerful 11 AMP motor delivers 8.4 ft.lbs. / 11.4 J. of impact energy to handle the most demanding applications
• L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
• L.E.D. light indicates electrical failure or notifies the user approximately 8 hours before brushes need to be replaced
