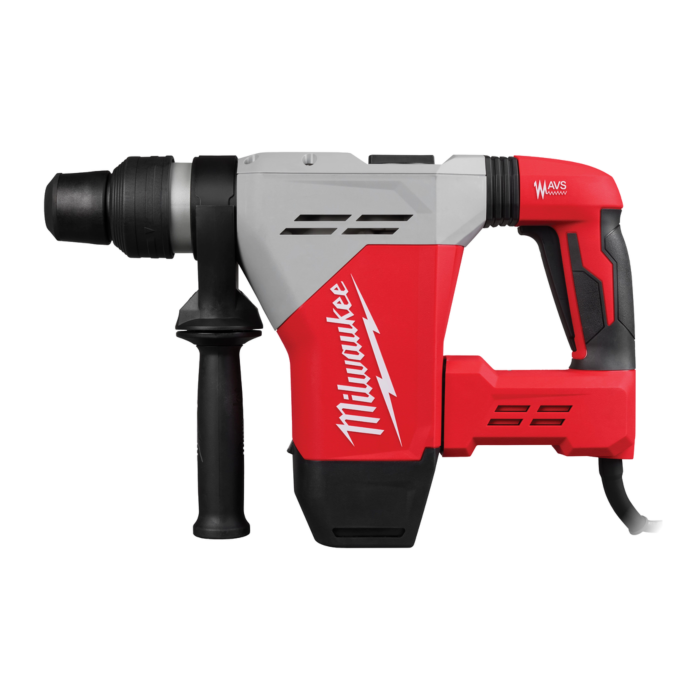

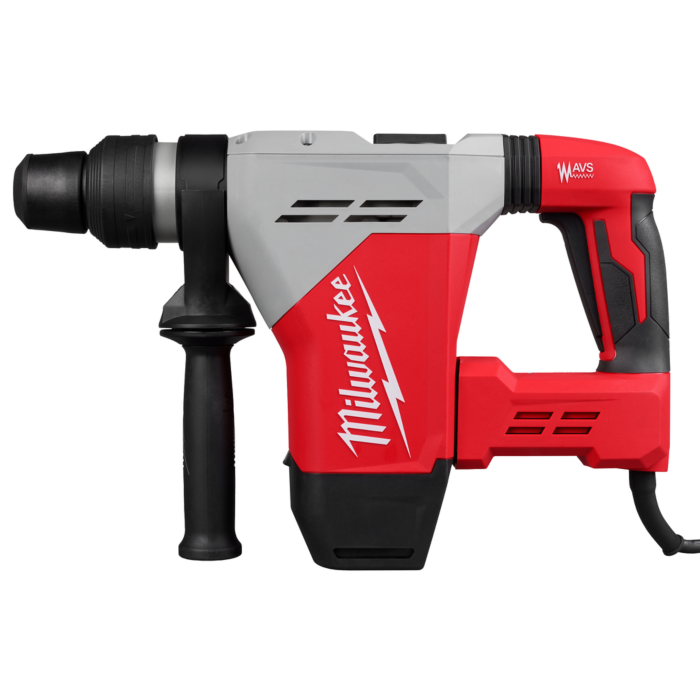

The MILWAUKEE® 1-9/16” SDS MAX Rotary Hammer is designed for all-day concrete drilling and chipping. The powerful 14A Motor delivers 5.6 ft-lbs of impact energy for demanding applications in any orientation. The AVS Anti-Vibration System is designed to reduce vibration, limit fatigue, and increase jobsite productivity. This corded rotary hammer offers maximum versatility with two-mode operation and 12-position chisel rotation, while a mechanical clutch provides protection in a bind-up. The 1-9/16” SDS MAX Rotary Hammer delivers the power needed to complete a variety of applications when power is readily available.
- Powerful 14-amp motor delivers 5.6 ft-lbs (7.6 J) of impact energy 488 RPM, and 3,300 BPM
- AVS Anti-Vibration System minimizes handle vibration for maximum comfort
- Soft start allows maximum control and accuracy at start-up
- Mechanical clutch protects the tool in a bind-up
- 2-mode operation for rotary hammer and hammer only
- 12-position chisel adjustment allows the user to adjust the bit for operating versatility
- LED light illuminates drilling surface for increased visibility
- 5-year warranty
| Brand | Milwaukee |
|---|---|
| UPC | 045242757312 |
| Store Location (Lititz, PA) | Aisle 28, Section S5 |
| Package Length (in) | 6.45" |
| Package Width (in) | 24.21" |
| Package Height (in) | 20.07" |
| Manufacturer Part Number | 5517-21 |
| Blows Per Minute (bpm) | 3300 |
| Chuck Size | 1-9/16 in |
| Chuck Type | SDS Max |
| Cord Length | 16 ft |
| Depth | 17.5 Inches |
| Dust Extractor Included | No |
| Handle Type | Drop Motor |
| Material | Metal |
| Maximum RPM | 488 |
| Motor Type | Brushed |
| Peak Amps (A) | 14 |
| Power Source | Corded |
| Rotary Hammer Size | 1-9/16 in |
| Switch Type | Trigger |
| Voltage | 120 |
| Country of Origin | China |
