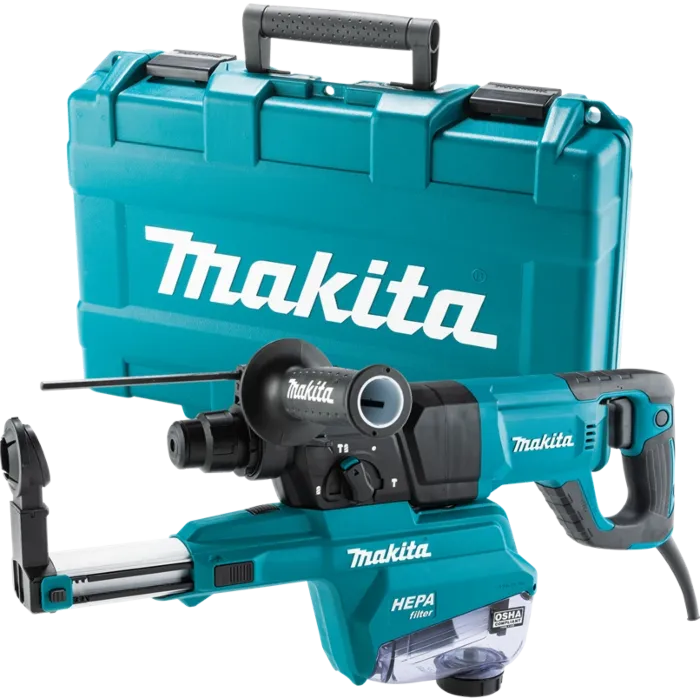

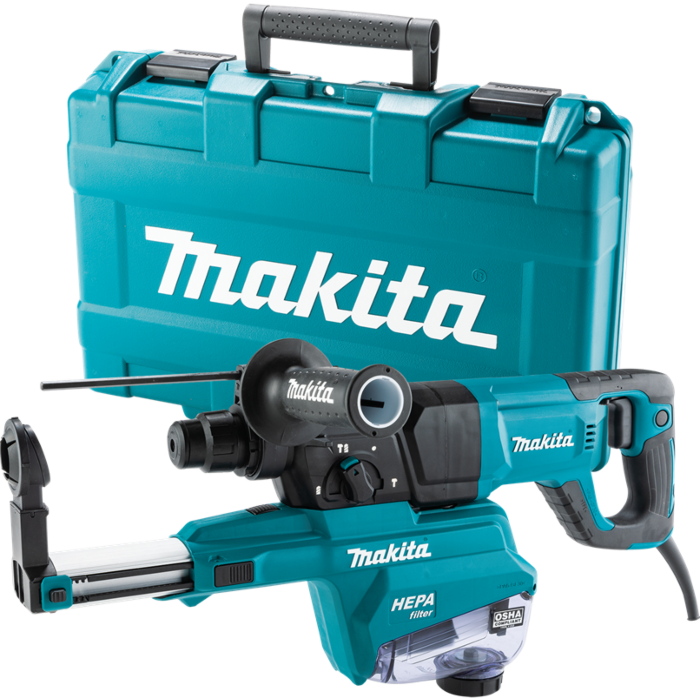

The Makita 1" SDS-PLUS AVT® Rotary Hammer with HEPA Dust Extractor (HR2663) combines powerful drilling and chipping with maximum dust control. Powered by an 8 AMP motor delivering 2.1 ft.lbs. of impact energy, this compact tool features 3-mode operation (rotation only, hammering with rotation, and chipping only). It incorporates Anti-Vibration Technology (AVT®) to reduce user fatigue and an OSHA Table 1-compliant HEPA dust extractor that captures 99.97% of particulates. With an ergonomic D-handle, integrated filter cleaning mechanism, and retractable hook, it's the ideal solution for overhead drilling and heavy-duty concrete applications.
Includes:
(1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism
(1) Dust Case with HEPA Filter Cleaning Mechanism
(1) HEPA Filter
(6) Sealing Cap
(1) Side Handle
(1) Depth Rod
(1) Tool Case
- Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications
- The OSHA Table 1 compliant on-board dust extractor provides a filter cleaning mechanism designed to help maintain optimum suction efficiency
- Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
- Anti-Vibration Technology (AVT®) is an internal counterbalance system that actively works to reduce vibration to the operator
- Transparent dust container provides needed visibility in determining when the dust box needs to be emptied
- Depth stop adjustment allows drilling up to 7-1/2" deep for increased capacity
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Retractable hook allows tool to remain close by but never in the way
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping Only" for multiple applications
- Variable speed trigger enables user to match the speed to the application for greater versatility
- 40 bit angle settings allow the bit to be set at different positions for operating convenience
- Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort
| Brand | Makita |
|---|---|
| Date Added | Aug 11, 2026 |
| Store Location (Lititz, PA) | Aisle 28, Section S4 |
| Package Length (in) | 21.61" |
| Package Width (in) | 5.83" |
| Package Height (in) | 14.57" |
| Manufacturer Part Number | HR2663 |
| AMPS | 8 |
| Max. Capacity (concrete drilling) | 1" |
| Optimum Range (concrete drilling) | 1/4" - 5/8" |
| Max. Hole Depth | 7-7/16" |
| Max. Capacity (concrete drilling w/ core bit) | 3-1/8" |
| Impact Energy | 2.2 J |
| Blows Per Minute (variable speed) | 0 - 4,500 BPM |
| No Load Speed (variable speed) | 0 - 1,100 rpm |
| HEPA filter | Yes |
| Container Hole Count Capacity | 36 holes of dimension 3/8”x2-3/8” |
| Filter Life (Approx. container fillings) | 200 |
| Vibration Control | Yes |
| Vibration | 9.5 m/s² |
| Sound Rating | 90 dB(A) |
| Overall Length | 18-7/8" |
| Cord Length | 13.1 ft |
| Net Weight | 9.7 lb |
| Bit Type | Accepts SDS-PLUS |
| Dust Collection | Yes |
| Power Type | Corded |
| Packaged Depth | 5.83" |
| Packaged Height | 14.57" |
| Packaged Width | 21.61" |
| Shipping Weight | 19.38 lb |
| UPC Code | 088381-873123 |
