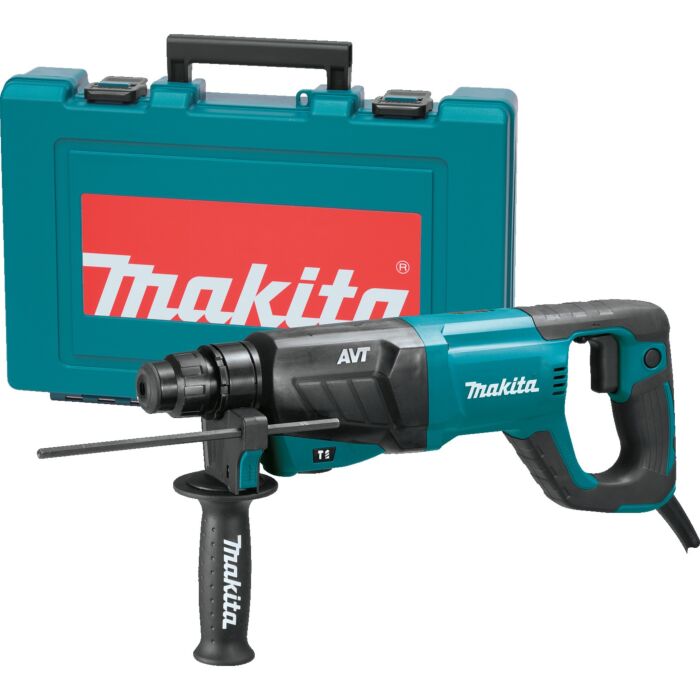

The Makita 1” AVT® Rotary Hammer (model HR2641, with D-Handle) is engineered with Anti-Vibration Technology (AVT®), an internal counterbalance system for significantly less vibration. The HR2641 combines performance and power with less vibration in a compact size, and is ideal for a range of applications including overhead drilling. The HR2641 has an 8 AMP motor that delivers 2.9 Joules (2.1 ft.lbs.) of impact energy to handle the most demanding applications. The 3-mode operation offers “rotation only”, “hammering with rotation” or “chipping only” for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability. The ergonomic D-shaped handle with a rubberized soft grip provides increased operator comfort, as well as a retractable tool hook to secure the tool to studs, ladders, and rails when not in use. The HR2641 is engineered for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more. It is ideal for a range of trades including masons, plumbers, electricians, sprinkler installers, city maintenance crews, and general contractors seeking a best-in-class 1” rotary hammer.
- Variable speed trigger enables user to match the speed to the application for greater versatility
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Recessed hammer function selector provides 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping" for multiple applications
- Depth Gauge (331886-4)
- Anti-Vibration Technology (AVT®) is an internal counterbalance system that greatly reduces vibration by moving a counterweight in the opposite direction of the drive piston
- Retractable hook allows tool to remain close by but never in the way
- DURABILITY - Torque limiting clutch engineered to prevent gear damage by disengaging gears if the bit binds
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping" for multiple applications
- POWER - 8 AMP motor delivers 2.1 ft.lbs. of impact energy
- Side Handle (451749-9)
- INCLUDES - Side handle, depth gauge and tool case
- Tool Case (824695-3)
- Anti-Vibration Technology (AVT®) is an internal counterbalance system that greatly reduces vibration
- Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
- 40 bit angle settings allow the bit to be set at different positions for operating convenience
- COMFORT - Anti-Vibration Technology is an internal counterbalance system that greatly reduces vibration
- Powerful 8 AMP motor delivers 2.1 ft.lbs./2.9 J. of impact energy to handle the most demanding applications
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort
- Recessed hammer function selector located below gear housing for improved durability
- VERSATILITY - 3-mode operation; "Rotation Only", "Hammering with Rotation" or "Chipping" for multiple applications
- Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381687485 |
| Store Location (Lititz, PA) | Aisle 28, Section S3 |
| Package Length (in) | 4.37" |
| Package Width (in) | 19.25" |
| Package Height (in) | 13.03" |
| Manufacturer Part Number | HR2641 |
| Country of Origin | China |
| Overall Length | 16-5/8" |
| Max. Capacity (concrete drilling w/ core bit) | 3-1/8" |
| Bit Type | Accepts SDS-PLUS |
| Vibration Control | Yes |
| AMPS | 8 |
| Impact Energy (ft.lbs.) | 2.1 |
| UPC Code | 088381-687485 |
| Power Type | Corded |
| Blows Per Minute (variable speed) | 0 - 4,500 BPM |
| Net Weight | 7.1 lbs. |
| No Load Speed (variable speed) | 0 - 1,100 RPM |
| Vibration (m/s²) | 11.5 |
| Shipping Weight | 12.13 lbs. |
| Bind-Up Control | No |
| Optimum Range (concrete drilling) | 1/4" - 5/8" |
| Cord Length (ft) | 13.1' |
| Max. Capacity (concrete drilling) | 1" |
| Impact Energy (Joules) | 2.9 J |
