Safeway

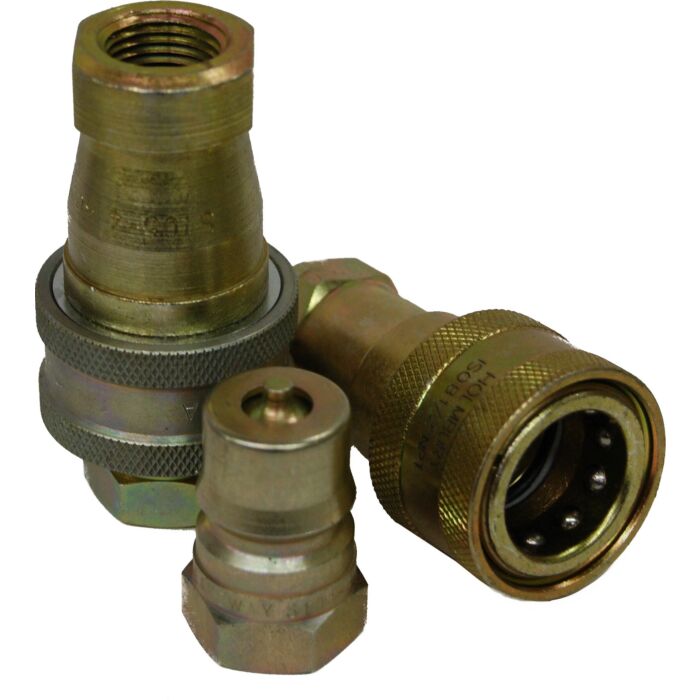

4.73 in 1 in Hydraulic Quick Coupling Set
SKU: S10X8 | Location: Aisle 06, Section W1
$109.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
5 In stock
Features
Specifications
SafeWay’s S10 Series is a general purpose, double shut-off quick coupling capable of containing a wide variety of fluids. primarily used for the transfer of hydraulic fluid, they can also be used with water, steam, chemicals and some gases. Widely used in both stationary and mobile industrial applications.
- Meets dimensional requirements of ISO 7241-1 Series b, the most widely used Industrial Interchange
- Available in body sizes from 1/8 in to 1 in with pipe thread and SAE o-ring boss (orb) standard
- Standard materials are steel, 303 stainless steel and brass. When ordering please add a prefix for either stainless steel or brass. example: S105-2 becomes SS105-2 in stainless steel and bS105-2 in brass
- Interchangeable half-for-half with Aeroquip FD45, hansen hK and parker 60 Series as well as others conforming to this interchange
- Double shut-off poppet style valving with captive poppet seal provides a durable, guaranteed leak-free seal
- Full-flow design for optimum system performance
- All S10 Series quick couplings are 100% leak tested
- Heavy-duty detent ball latch design for a reliable connection time after time
- Steel products feature RoHS Compliant plated surfaces (silver appearance)
- Seals for most fluids available upon request
- Only rugged, high quality carbon steel valving and retainers; no powdered metal parts
- Brass and stainless steel S10 Series couplers are supplied with hardened stainless steel locking detent balls, poppet valve springs and retaining rings for increased corrosion resistance
- Sleeve lock, one-way shut-off and straight-thru designs are available
- Heavy-duty steel dust caps and dust plugs are available for the male tip halves and female body halves
- Field repair kits are available for 3/4 in and 1 in couplers in all materials and o-ring compounds
- Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.r2, Hydraulic fluid power - Quick action couplings - Test methods
| Brand | Safeway |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section W1 |
| Package Length (in) | 5.40" |
| Package Width (in) | 3.20" |
| Package Height (in) | 2.60" |
| Manufacturer Part Number | S10-8 |
| Outside Diameter | 2.51 in |
| Overall Length | 4.73 in |
| Hub Size | 1 in |
| Temperature Rating | -40 to 250 deg F |
| Material | Steel |
