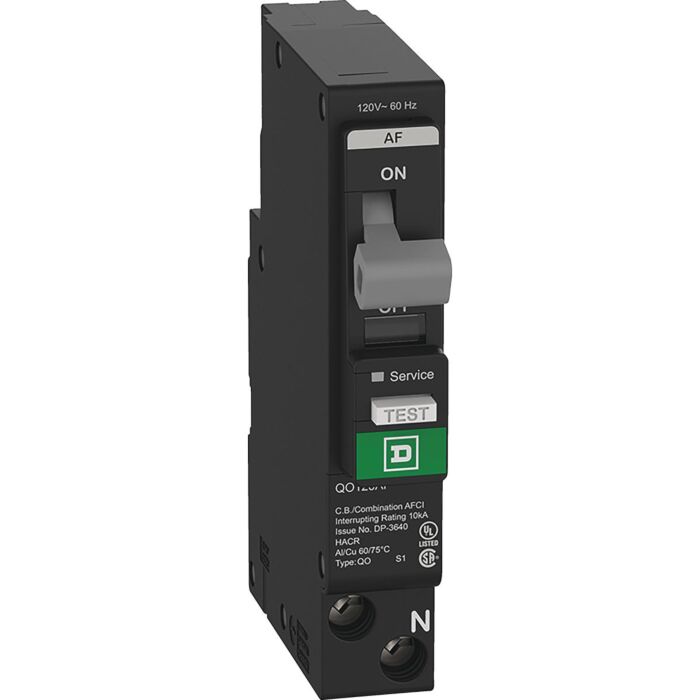

1-Pole 15A, 120 VAC Plug-In Mini Circuit Breaker
SKU: QO115PAFC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$82.99
Features
Specifications
The QO 15A, 120VAC One-Pole Circuit Breaker provides reliable overcurrent protection for AC and DC systems with a 10kA breaking capacity. This plug-in unit features a quick-make/break mechanism, VisiTrip™ trip indication, and a combination arc fault with plug-on neutral. It is both UL Listed and CSA Certified for professional-grade safety and performance.
| Brand | Square D |
|---|---|
| Date Added | May 7, 2026 |
| UPC | 785901780175 |
| Store Location (Lititz, PA) | Aisle 08, Section D2 |
| Package Length (in) | 4.00" |
| Package Width (in) | 4.75" |
| Package Height (in) | 8.50" |
| Manufacturer Part Number | QO115PAFC |
| Actuator Type | Quick-Break Quick-Make Toggle |
| Current Rating | 15 A |
| Dimensions | 2.72" H x 0.75" W x 4.1" D |
| Number of Poles | 1 |
| Number Of Spaces | 1 |
| Operating Frequency | 60 Hz |
| Operating Temperature | 104 deg F |
| Terminal Type | Pressure Plate |
| Type | Combination Arc Fault |
| Voltage Rating | 120 VAC |
| Wire Size | 14 to 8 AWG Copper 12 to 8 AWG Aluminum |
| Series | QO |
| Trip Adjustability | Fixed |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Standards | CSA C22.2 No. 5, UL 1699, UL 489 |
| Approval | CSA, HACR, UL |
