Features
Specifications

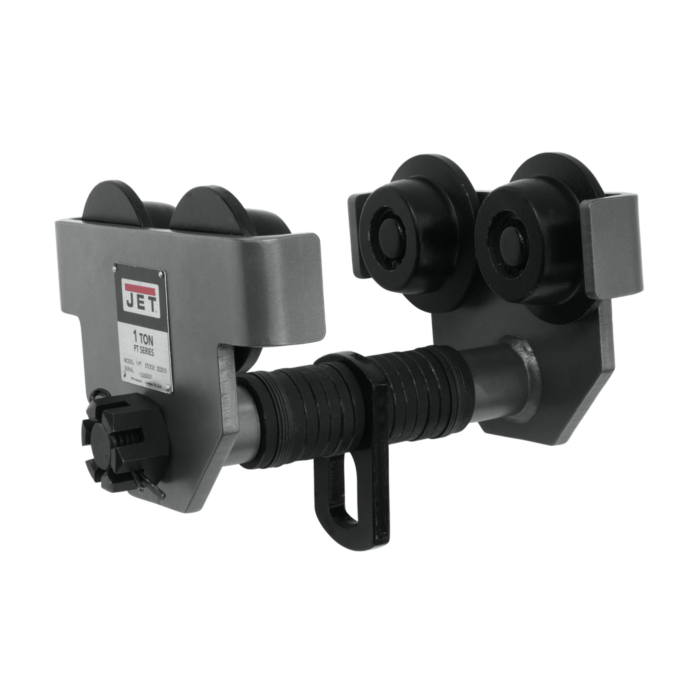

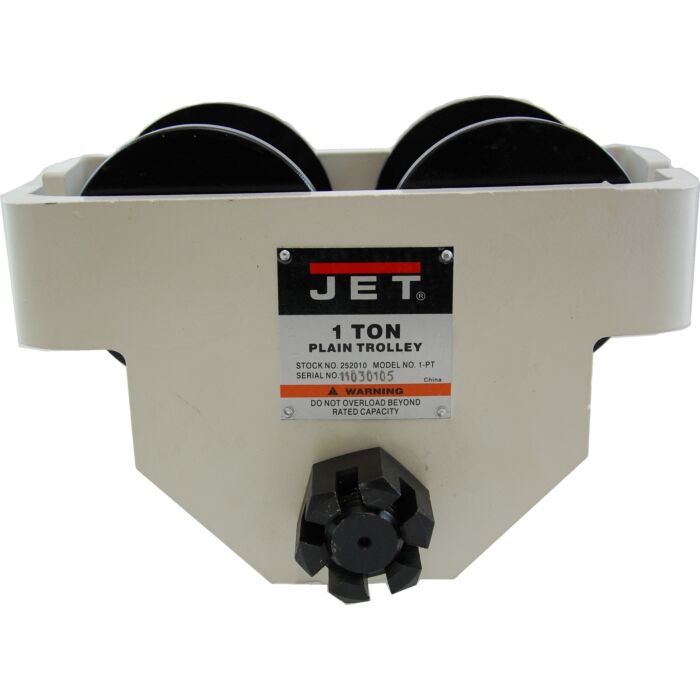

JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
Brand | JET Tools |
---|---|
UPC | 662755223280 |
Store Location (Lititz, PA) | Aisle 11, Section I1 |
Package Length (in) | 13.80" |
Package Width (in) | 5.20" |
Package Height (in) | 7.80" |
Manufacturer Part Number | JT9-252010 |
Country of Origin | China |
Length | 13.9 |
Width | 5.1 |
Height | 7.6 |
Weight | 33.05 |
Warranty | 2 Year |
Capacity (Lbs.) | 2200.0000 |
Hook Mount Headroom (In.) | 5 |
Load Capacity (Tons) | 1 |
Maximum Beam Flange Width (In.) | 8 |
Minimum Beam Curve Radius (In.) | 39 |
Minimum Beam Flange Width (In.) | 3 - 8 |
Minimum Beam Height (In.) - jpw_minimum_beam_heighth_in | 19.0000 |
Wheel Diameter (In.) | 5 |
Max. Hook Size (W/in.) | 1-1/5 |
Minimum Beam Height (In.) - Min_Beam | 4 |
Overall Dimensions (L x W x H / in.) | 10 x 13 x 6 |
