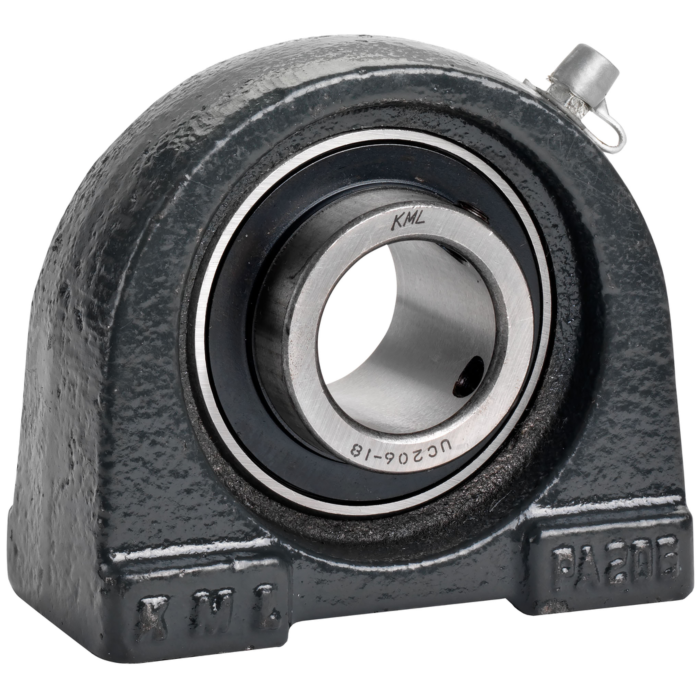

PILLOW BLOCK, TAPPED BASE, METRIC BOLT HOLES, NORMAL DUTY, SET SCREW TYPE - UCPA205-16 (1" DIA)
SKU: UCPA20516KML
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$26.09
Features
Specifications
Downloads
PILLOW BLOCK, TAPPED BASE, METRIC BOLT HOLES, NORMAL DUTY, SET SCREW TYPE - UCPA205-16 (1" DIA)
| Brand | KML |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section W3 |
| Package Length (in) | 3.40" |
| Package Width (in) | 3.20" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | UCPA205-16 |
| Design | Metal backed nitrile rubber excluder seal protected by steel flinger installed in front of the seal contact surface with the inner ring. |
| Grease Type | Chevron SRI#2 |
| Item Type | 4335 |
| Shaft Diameter | 1 Inches |
| h" Base to Center | 1.4375 Inches; 36.512499999999996 Millimeter |
| a" Overall Length | 3.3125 Inches; 84.13749999999999 Millimeter |
| e" Bolt Hole Centers | 56 Millimeter |
| b" Width | 1.5 Inches; 38.099999999999994 Millimeter |
| w" Overall Height | 2.84375 Inches; 72.23125 Millimeter |
| Bi" Through the Bore | 1.339 Inches; 34.0106 Millimeter |
| n" Back of Bearing to Center of Bearing | 0.563 Inches; 14.300199999999998 Millimeter |
| Bearing Number | UC205-16 |
| Housing Number | PA205 |
| Cr" Dynamic Load Rating | 14000 Newton |
| Cor" Static Load Rating | 7560 Newton |
| Limiting Speed | 5500 RPM |
| Mass | 1.76 Pounds; 0.7999999999999999 Kilogram |
