Little Giant Pump
1-YS, Recommended Pumps for MCT-5P Tank
SKU: 501020
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$159.99
Features
Specifications
Downloads

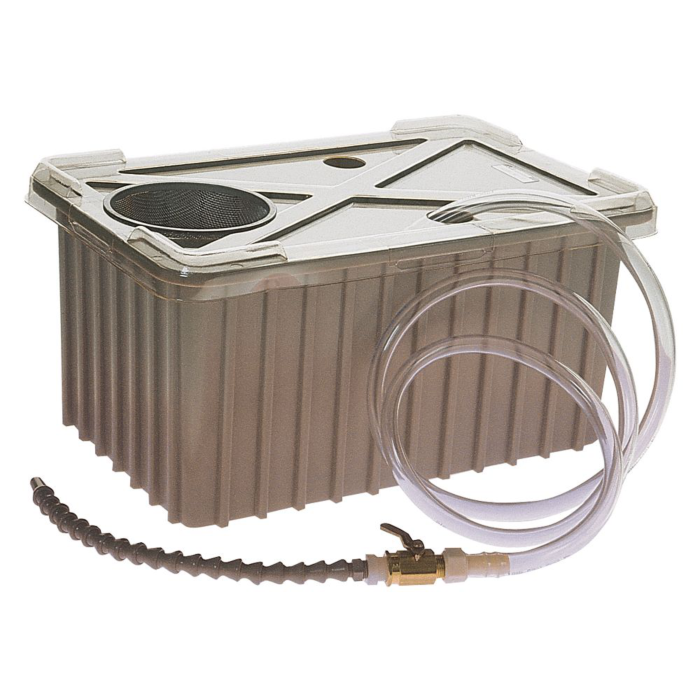

The MCT Series is for use on single-spindle drill presses, bench mills, tool grinders, single spindle tapping machines, cut-off saws, small lathes using water-soluble or light cutting oil. A pump is not included.
- Available in 5-or 10-gallon tank option
- Metal chip collector basket and baffle
- Brass control valve
- Plastic flex nozzle
- 4' or 6' hose option (based on model)
| Brand | Little Giant Pump |
|---|---|
| UPC | 010121010208 |
| Store Location (Lititz, PA) | Aisle 08, Section H4 |
| Package Length (in) | 6.20" |
| Package Width (in) | 5.80" |
| Package Height (in) | 4.60" |
| Manufacturer Part Number | 501020 |
| Discharge Type | MNPT |
| Discharge | 0.5 " |
| Suction Type | Screened |
| Product Weight | 3.3 lb / 1.5 kg |
| Product Width | 3.7 " / 9.4 cm |
| Product Height | 4.3 " / 10.92 cm |
| Product Length | 4.1 " / 10.41 cm |
| Pump Length | 4.6 " / 11.68 cm |
| Product Weight w/ Pack | 3.5 lb / 1.59 kg |
| Carton Width | 4.25 " / 10.8 cm |
| Carton Height | 6.5 " / 16.51 cm |
| Carton Length | 4.5 " / 11.43 cm |
| HP | 1/50 hp |
| Frequency | 60 Hz |
| Amps - Full Load | 1.1 A |
| Full Load Watts | 70 W |
| Volts | 115 VAC |
| Cord Length | 6 ft / 1.83 m |
| Max Flow Rate - 60 Hz | 3.42 gpm / 205 gph / 776 Lph / 12.93 Lpm / 0.78 m³/h |
| Flow Rate At 1ft | 3.42 gpm / 205 gph / 776 Lph / 12.93 Lpm / 0.78 m³/h |
| Shut-Off | 7.4 ft / 2.26 m |
| Shut Off Height - 60Hz | 7.4 ft / 2.26 m |
| Max PSIG - 60Hz | 3.2 PSI |
| Max Fluid Temperature | 120°F |
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Intake Screen Material | Polyethylene |
| Seal Material | Viton Retainer |
| Tank Size | 5 or 10 gallon |
| Tank Material | Polypropylene |
| Hose | 4' or 6' options |
| Model | 1-YS |
