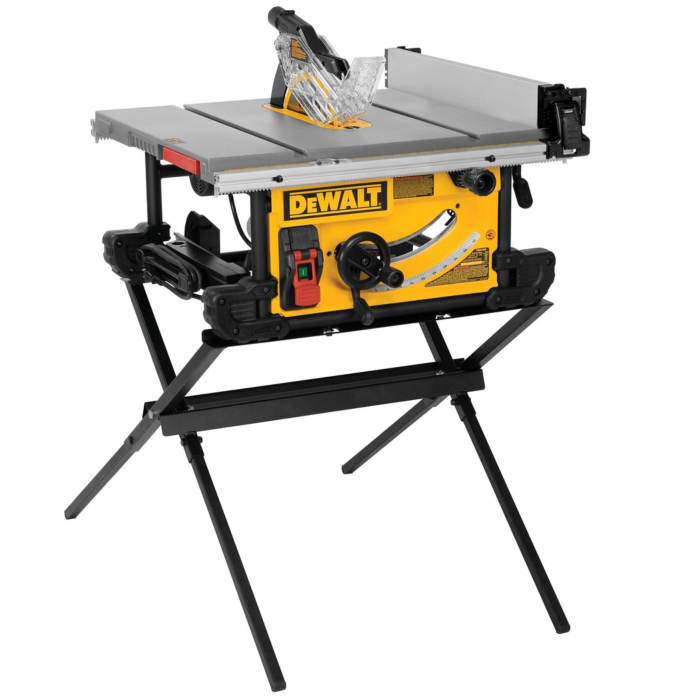

The DWE7491X 10 in. Jobsite Table Saw with Scissor Stand has a 15 Amp motor and 32-1/2 in. rip capacity to allow cutting of large and hardwood materials. Features tool-free guarding component adjustments and fast, accurate fence adjustments. Scissor stand designed for easy set up and breakdown with excellent stability.
- Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate
- 32-1/2 in. rip capacity easily cuts a variety of larger shelving and trim materials
- Two position flip-over rip fence allows for narrow rip cuts and material support
- Site-Pro modular guarding system allows for tool-free adjustments of guarding components appropriate for each application
- 2-1/2 in. Dust Collection Port easily connects to a vacuum for efficient dust extraction
- Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use.
- Folding scissor stand designed for easy set up and breakdown with excellent stability
- 15 amp Motor quickly rips through hardwoods with ease
- Telescoping fence rails retract to create a small, portable package
- 3-1/8 in. depth-of-cut at 90 and 2-1/4 in. at 45
- (1) Scissor Stand | (1) Push Stick | (1) Miter Gauge | (1) Rip Fence | (2) Blade Wrenches | (1) Blade Guard Assembly | (1) 10 in. 24-Tooth Carbide Blade
- No
| Brand | DEWALT |
|---|---|
| UPC | 885911556828 |
| Store Location (Lititz, PA) | In Warehouse, see sales associate |
| Package Length (in) | 30.83" |
| Package Width (in) | 20.63" |
| Package Height (in) | 20.63" |
| Manufacturer Part Number | DWE7491X |
| Country of Origin | Mexico |
| Height | 29.880 in |
| Length | 30.500 in |
| Width | 20.630 in |
| Weight | 90.900 lbs |
| Product Type | TABLE SAW |
| Cordless Vs. Corded | Corded |
| Voltage | 120 V V |
| Battery Included | No |
| Amperage | 15 |
| Cord Length | 6 Ft |
| Warranty | 3LW1YS90D |
| Arbor Size | 0.625 |
| Bare Tool | Yes |
| Blade Diameter | 10 in In. |
| Blade Location | Centered |
| Cuts Into | Wood |
| Kit | No |
| Maximum Cut Depth @ 45 Deg. | 2.25 |
| Maximum Cut Depth @ 90 Deg. | 3.125 |
| Maximum Speed | 4800 RPM Rpm |
| Phase | Single-phase |
| Rip Capacity Left | 22 In |
| Rip Capacity Right | 32.5 In |
| Table Length | 26.75 In |
| Table Material | Aluminum |
| Table Width | 26.5 In |
