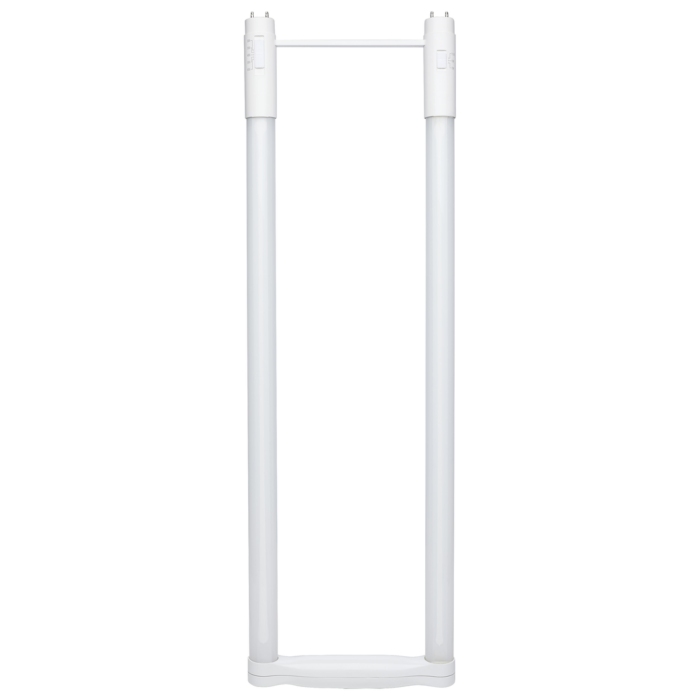

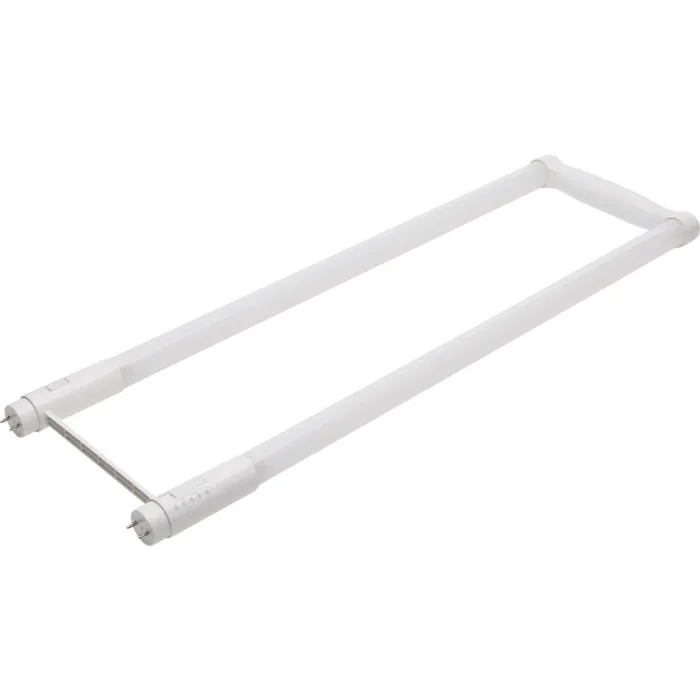

11.5/13/15 Wattage Selectable T8 U-Bend LED - 30K/35K/40K/50K/65K CCT Selectable - 6-Inch - Frost Finish - 120-277 Range Voltage
SKU: S18413
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$22.99
Features
Specifications
Downloads
SATCO NUVO's S18413 LED filament U-Bend lamp with 6-inch leg spacing, delivers versatile and efficient lighting solutions for a range of applications. This lamp consumes significantly less energy than its fluorescent counterpart and features a much longer lifespan, leading to reduced maintenance costs. With selectable CCT and wattage, users can perfectly tailor the light output to their needs. The Type A/B ballast bypass compatibility provides flexibility for easy installation with or without the existing ballast, enhancing convenience and long-term energy savings. Constructed with full glass housing, this lamp resists aging, yellowing, and bending, ensuring lasting durability. It is mercury-free, environmentally friendly, and NSF approved, making it safe for food service and healthcare environments. Retrofit your fluorescent U-Bend lamps with our LED U-Bend lamp and start saving today.
- CCT and Wattage Selectable
- Type A/B Ballast Bypass
- NSF Approved
- Single and Double Ended Wiring
- Full Glass Housing
- 6 inch Leg Spacing
- 50,000 Hour Functional Life
- 5 Year Warranty
- Ballast required (Type A) or Ballast Bypass (Type B)
- Not for use in vapor tight fixtures. Direct replacement for 32W T8 U6 lamps only.
| Brand | Satco |
|---|---|
| UPC | 045923184130 |
| Store Location (Lititz, PA) | Aisle 10, Section D3 |
| Package Length (in) | 1.22" |
| Package Width (in) | 1.22" |
| Package Height (in) | 23.03" |
| Manufacturer Part Number | S18413 |
| Country of Origin | China |
| Weight | 0.55 lbs |
| Warranty | 5-Years |
| Amps | 0.192A |
| ANSI Base | G13 |
| Ballast Bypass Direct | Dual |
| Beam Spread | 210 |
| CCT Selectable | Yes |
| CA Regulations | Exempt - Base Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Only in Type A mode, Check Ballast MFG for Dimmer Compatibility |
| DLC Approved | Yes |
| DLC Classification | Standard |
| DLC ID | S-GDKRYT |
| DLC Primary Use | Dual Mode Internal Driver (UL Type A and Type B) |
| Enclosure Rating | Enclosed Rated Lamp |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | U-Bend |
| Flr Equiv | 32W |
| Avg Rated Hours | 50000 |
| Housing Color | White |
| Finish | Frost |
| Incandescent Equiv | 50W |
| Indoor Outdoor | Indoor |
| Lamp Base | Medium Bi Pin |
| Lamp Filament | LED |
| Lamp Shape | T8 |
| Lamp Ballast Type A/B/C | Type A/B |
| Lamp End Type | Double Ended, Single Ended |
| Leg Spacing | 5.98 in. |
| Lens Finish | Frost |
| Lens Material | Glass |
| Lumens | 1800L/2000L/2200L |
| Material | Glass |
| MOD Decimal | 0.96 in. |
| MOL Decimal | 22.43 in. |
| NSF Approved | Yes |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Power Factor | >0.9 |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| Location Rating | Damp |
| Technology | LED |
| Temperature (CCT) | 3000K/3500K/4000K/5000K/6500K |
| THD | <20% |
| Three-Way | Yes |
| Volts | 120V-277V |
| Watts | 11.5W/13W/15W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
