Features
Specifications

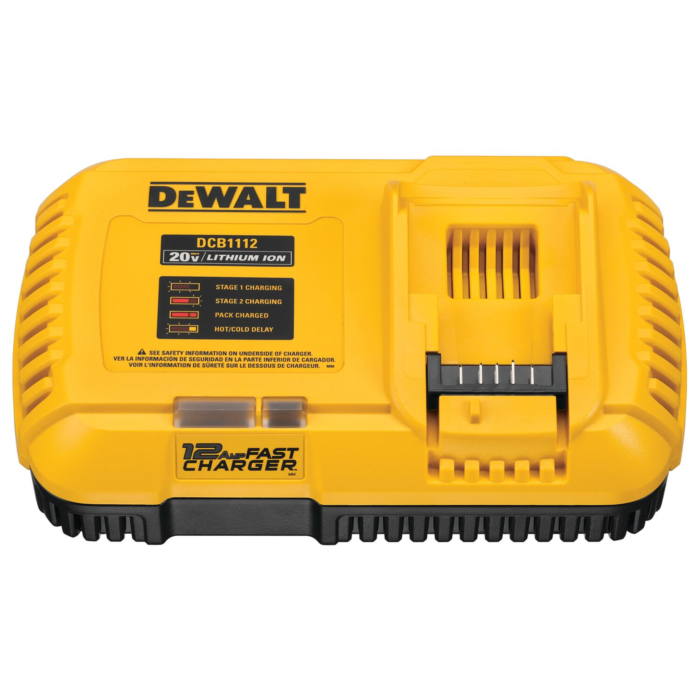

This 12 Amp Fast Charger has the highest charge rate in our 20V MAX and DEWALT FLEXVOLT Lithium Ion battery range, minimizing downtime on the site. The new Stage 1 and Stage 2 LED indicators communicate more about the batteries state of charge than those without. The Stage 1 LED blinks until the battery is approximately 80% charged. It then stays solid and the Stage 2 LED blinks until the battery is fully charged.
- COMPATIBILITY: DEWALT 20V MAX and FLEXVOLT 20V/60V MAX batteries
- STATE OF CHARGE INDICATOR: Two-stage LED state of charge indicator
- FAN COOLING: Internal fan circulates air across batteries to reduce hot/cold pack delays resulting in faster charger cycle times
- MOUNTING CAPABILITY: Two screw wall mount (screws sold separately)
Brand | DEWALT |
---|---|
UPC | 885911644013 |
Store Location (Lititz, PA) | Aisle 22, Section M2 |
Package Length (in) | 11.25" |
Package Width (in) | 4.38" |
Package Height (in) | 4.38" |
Manufacturer Part Number | DCB1112 |
Country of Origin | Thailand |
Height | 9.500 in |
Length | 11.630 in |
Width | 4.375 in |
Weight | 2.200 lbs |
Power Source | Electric |
Cordless Vs. Corded | Cordless |
Voltage | 20 V V |
Battery Type | 20V MAX* Lithium Ion |
Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
Net Lit-Ion Y/N | Yes |
Charger Included | Yes |
Charger Type | Wall Mountable Charging Base |
Amperage | 12 |
Battery Required | Yes |
Cord Length | 6 Ft |
Number Of Batteries Required | 1 |
Rechargeable | Yes |
Disclaimer | The rated output current for this charger is the maximum charging rate when used with DEWALT battery packs designed to charge at this rate |
Prop 65 Generic Warning | Yes |
Warranty | 3LW1YS90D |
Claims Needed | No |
Energy Star | No |
Ac/Dc | AC |
Alternator Check | No |
Automatic | No |
Compatibility | DEWALT 20-Volt |
Display Stye | LED |
Engine Starting Capability | No |
Float Mode | No |
High Frequency Charge | No |
Housing Material | Plastic |
Individual Vs. Set (Syndigo) | INDIVIDUAL |
Low Ac Input Compensation | No |
Maximum Charging Current | 20 |
Pulse Conditioning | No |
Reverse Polarity Protection | No |
Short Circuit Protection | No |
Thermal Overload Protection | No |
Weather Resistant | No |
