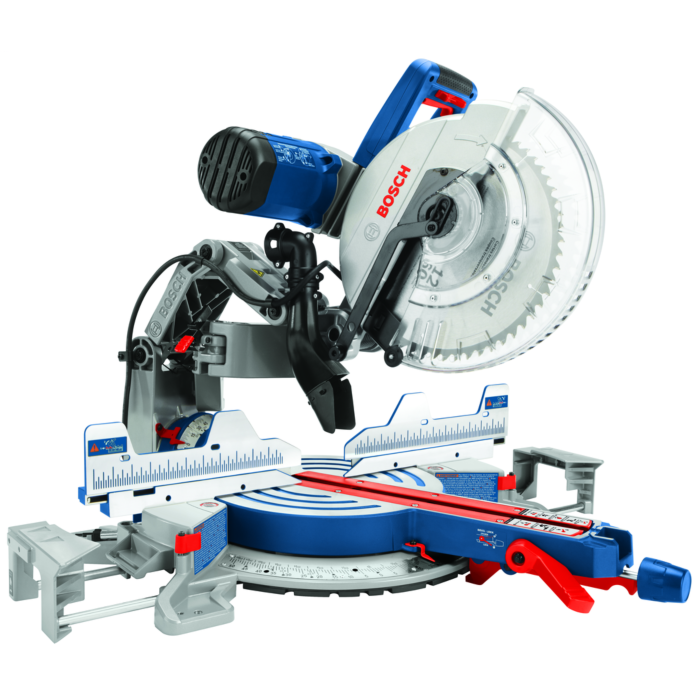

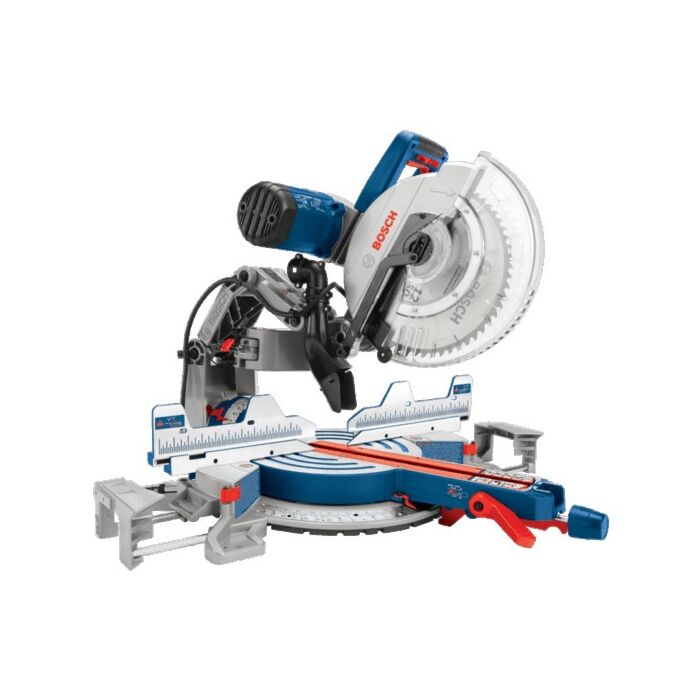

The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
- The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system
- Pre-aligned SquareLockfences help the saw maintain precision throughout its life
- A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
- The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
- Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40 In. left to right
- Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
- Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
- Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
- Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
- Category best 90% dust collection - optimized for cutting 2x material with a vacuum
- Ergonomic ambidextrous trigger handle with soft grip - large form fitting ergonomic handle provides comfort for all-day use

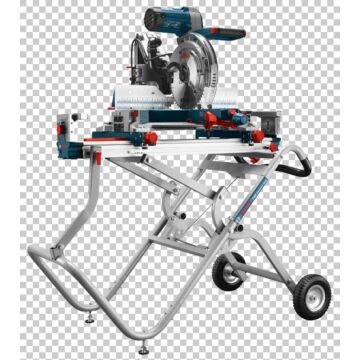

- Bosch T4B
- Bosch GTA3800
- Bosch MS1233
- Bosch MS1234
- Bosch LS010
- Bosch VAC024
- Bosch VAC002
- Bosch VAC020
- Bosch VAC021
- Bosch VAC010
- Bosch VAC009
- Bosch VAC008
- Bosch VAC007
- Bosch VAC006
- Bosch VAC005
- Bosch VH1622A
- Bosch VH1022
- Bosch VH1035
- Bosch VH1635A
- Bosch VH1635
Brand | Bosch |
---|---|
UPC | 000346393941 |
Store Location (Lititz, PA) | In Warehouse, see sales associate |
Manufacturer Part Number | GCM12SD |
Additional Cutting Specifications | Max. 45° Crown Molding Angled Against Fence = 6 In. Max. 38° Crown Molding Angled Against Fence = 5-1/4 In. (5-1/2 In. from 0° to 47° L) Max. Base Molding Against Fence= 3-7/8 In. (L 6-3/4 In. from 0° to 47 L) |
Amperage (A) | 15 |
Arbor Size (in) | 1 |
Base Construction | Aluminum |
Bevel Stops | 0°, 33.9°, 45° Left/Right |
Beveling Capability | Dual |
Blade Diameter (in) | 12 |
Blade Wrench Included | Yes - Stored on Tool |
Blades Included | 1 |
CSA Certified | Yes |
Color / Finish | Metal |
Cord Length (ft) | 6 |
Cordless / Corded | Corded |
Country of Origin | China |
Crosscut Capacity - 45 Miter 45 Left Bevel | 2 In. x 9-1/2 In. (2x10 Dimensional Lumber) |
Crosscut Capacity - 45 Miter 45 Right Bevel | 1-1/2 In. x 9-1/2 In. (2x10 Dimensional Lumber) |
Dust Collection | Yes |
Dust Port | Yes |
ETL Listed | No |
Electric Motor Brake | Yes |
Electrical Cord Configuration | Heavy Duty |
Electronic Speed Control | No |
External Motor Brush Access | No |
Fence Size (HxL) | Left: 4-1/4 In. x 11-3/4 In. Right: 4-1/4 In. x 12-1/4 In. |
Fence Type | SquareLock™ Quick-Release |
GTIN | 00000346393941 |
Height (in) | 27 |
Integrated Laser Guide | No |
Integrated Work Light | Not Featured |
Length (in) | 32.375 |
Maximum RPM - No Load | 3800 |
Miter Detents | 0°, 15°, 22.5°, 31.6°, 45° (Left/Right) |
Miter Saw Type | Sliding Dual Bevel Compound Miter |
Motor Horsepower (hp) | 3 |
Net Tool Weight (lbs) | 65 |
Quick Release Vise | No |
Saw Blade Diameter (in) | 12 in |
Saw Drive | Belt Drive |
Spindle Lock | Yes |
Tool-Less Blade Changing | No |
UL Listed | Yes |
Voltage | 120 Volts |
Weight | 65 lb |
Weight (lbs) | 65 lb |
Width (in) | 26.5 |
