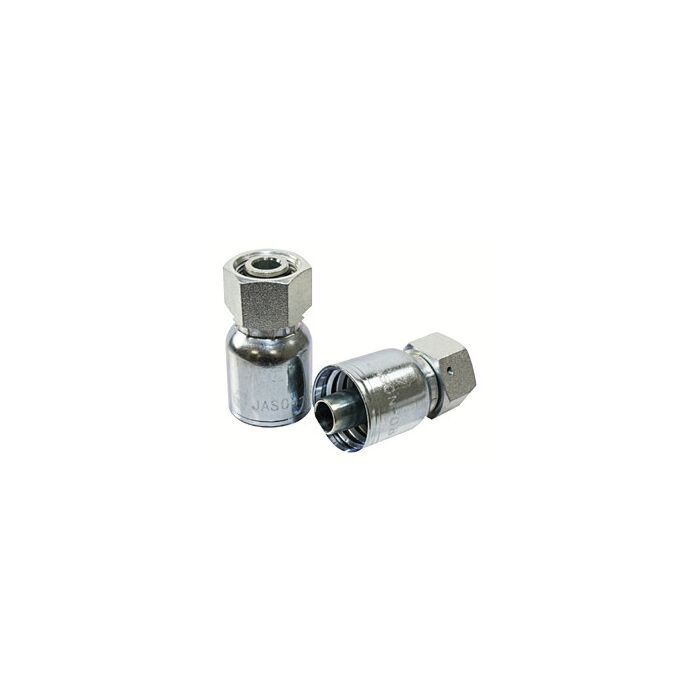

12 Series End Metric O-Ring Female Swivel
12 Series 1/4" Hose M14 x 1.5 FS
12 Series 1/4 Hose M16 x 1.5 FS
12 Series End 3/8" Hose x M16-1.5 FS
12 Series End 3/8" Hose x M18-1.5 FS
12 Series End 1/2" Hose x M22-1.5 FS
SKU: 12LFSORM-
SKU: 12LFSORM1404
SKU: 12LFSORM1604
SKU: 12LFSORM1606
SKU: 12LFSORM1806
SKU: 12LFSORM2208
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$7.74
As low as:
Features
Specifications
12 Series 1/4" Hose M14 x 1.5 FS
- Jason 12 Series Crimp-On Hose Ends
12 Series 1/4" Hose M14 x 1.5 FS
- Jason 12 Series Crimp-On Hose Ends
12 Series 1/4 Hose M16 x 1.5 FS
- Jason 12 Series Crimp-On Hose Ends
Hydraulic Coupling, Series: 1277, 3/8 in, Female Swivel O-Ring - 24 deg Cone L Series DIN 3865 - Metric, M16-1.5, 2.32 in Overall Length, 1.26 in Cut-Off Length, 3/4 in Hex
Hydraulic Coupling, Series: 1277, 3/8 in, Female Swivel O-Ring - 24 deg Cone L Series DIN 3865 - Metric, M18-1.5, 2.28 in Overall Length, 1.22 in Cut-Off Length, 0.87 in Hex
Hydraulic Coupling, Series: 1277, 1/2 in, Female Swivel O-Ring - 24 deg Cone L Series DIN 3865 - Metric, M22-1.5, 2.6 in Overall Length, 1.38 in Cut-Off Length, 1.06 in Hex
| Brand | Jason |
|---|---|
| Package Length (in) | 1.89" |
| Package Width (in) | 0.67" |
| Package Height (in) | 0.67" |
| Manufacturer Part Number | 1277-1404 |
| Type | Metric L-Series, O-ring, Female Swivel |
| Size | 14MM |
| Inner_diameter | 1/4" |
| Thread | M14-1.5 |
| Length | 28MM |
| Overall_length | 48MM |
| Style | 12 Series |
| Brand | Jason Industrial |
| Brand | Jason |
|---|---|
| Package Length (in) | 1.89" |
| Package Width (in) | 0.67" |
| Package Height (in) | 0.67" |
| Manufacturer Part Number | 1277-1404 |
| Type | Metric L-Series, O-ring, Female Swivel |
| Size | 14MM |
| Inner_diameter | 1/4" |
| Thread | M14-1.5 |
| Length | 28MM |
| Overall_length | 48MM |
| Style | 12 Series |
| Brand | Jason Industrial |
| Brand | Jason |
|---|---|
| Package Length (in) | 2.32" |
| Package Width (in) | 0.75" |
| Package Height (in) | 0.75" |
| Manufacturer Part Number | 1277-1404 |
| Brand | Jason |
|---|---|
| Package Length (in) | 2.32" |
| Package Width (in) | 0.75" |
| Package Height (in) | 0.75" |
| Manufacturer Part Number | 1277-1606 |
| Series | 1277 |
| Hose ID | 3/8 in |
| Connection Type | Female Swivel O-Ring - 24 deg Cone L Series DIN 3865 - Metric |
| Thread Size | M16-1.5 |
| Overall Length | 2.32 in |
| Cut-Off Length | 1.26 in |
| Hex Size 1 | 3/4 in |
| Brand | Jason |
|---|---|
| Package Length (in) | 2.28" |
| Package Width (in) | 0.87" |
| Package Height (in) | 0.87" |
| Manufacturer Part Number | 1277-1806 |
| Series | 1277 |
| Hose ID | 3/8 in |
| Connection Type | Female Swivel O-Ring - 24 deg Cone L Series DIN 3865 - Metric |
| Thread Size | M18-1.5 |
| Overall Length | 2.28 in |
| Cut-Off Length | 1.22 in |
| Hex Size 1 | 0.87 in |
| Brand | Jason |
|---|---|
| Package Length (in) | 2.60" |
| Package Width (in) | 1.06" |
| Package Height (in) | 1.06" |
| Manufacturer Part Number | 1277-2208 |
| Series | 1277 |
| Hose ID | 1/2 in |
| Connection Type | Female Swivel O-Ring - 24 deg Cone L Series DIN 3865 - Metric |
| Thread Size | M22-1.5 |
| Overall Length | 2.6 in |
| Cut-Off Length | 1.38 in |
| Hex Size 1 | 1.06 in |
