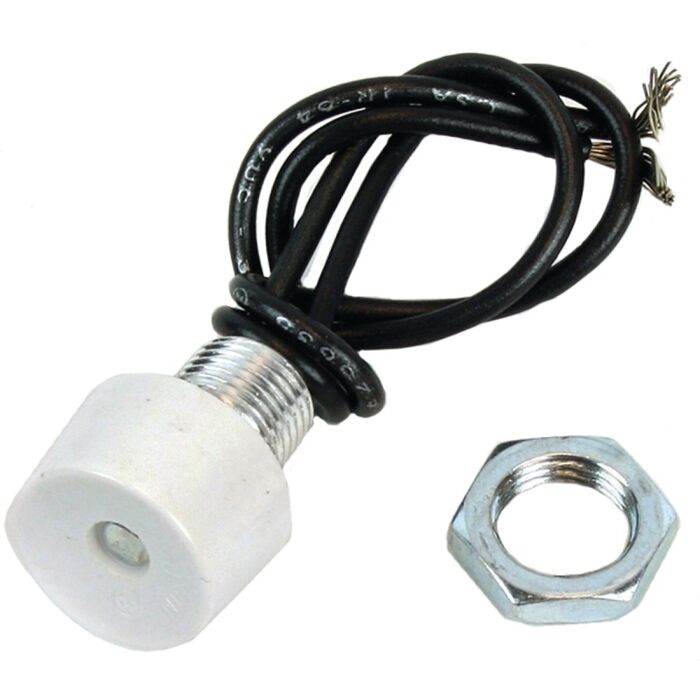

This Jandorf Single Circuit Rotary Switch is a Single Pole, Single Throw (SPST) device primarily intended for lamp applications, featuring a white hat canopy and providing an On/Off function. Its main rating is 1 A at 125 V, though it has additional ratings up to 3 A at 125 V and 1.5 A at 250 V (including 1A-125VT, 3A-125VL, and 5A-15VT), and it connects via two 6-inch, 18 AWG wires.
| Brand | Jandorf |
|---|---|
| UPC | 740265612173 |
| Store Location (Lititz, PA) | Aisle 08, Section D5 |
| Package Length (in) | 2.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | 61217 |
| Contact Configuration | SPST |
| Current Rating | 1A |
| Number of Poles | 1 |
| Voltage Rating | 125V |
| Apps | Lamp |
| Details | White hat canopy |
| Poles | Single Pole, Single throw |
| Function | On/Off |
| Terminals | 2 Wire 6" 18AWG |
