14/2 MC Cable
50 ft 14/2 MC Cable
100 ft 14/2 MC Cable
25 ft 14/2 MC Cable
SKU: 142MC-
SKU: 142MC50
SKU: 142MC100
SKU: 142MC25
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$47.99
As low as:
Features
Specifications
Downloads

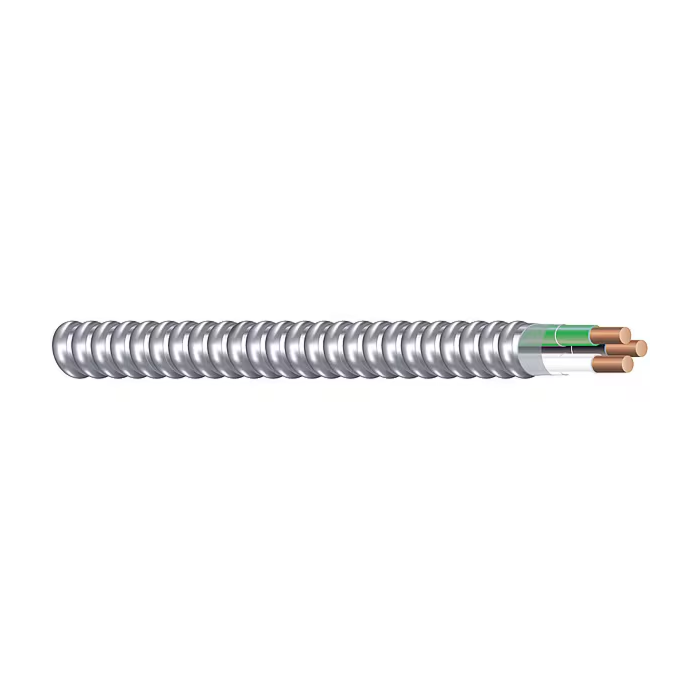

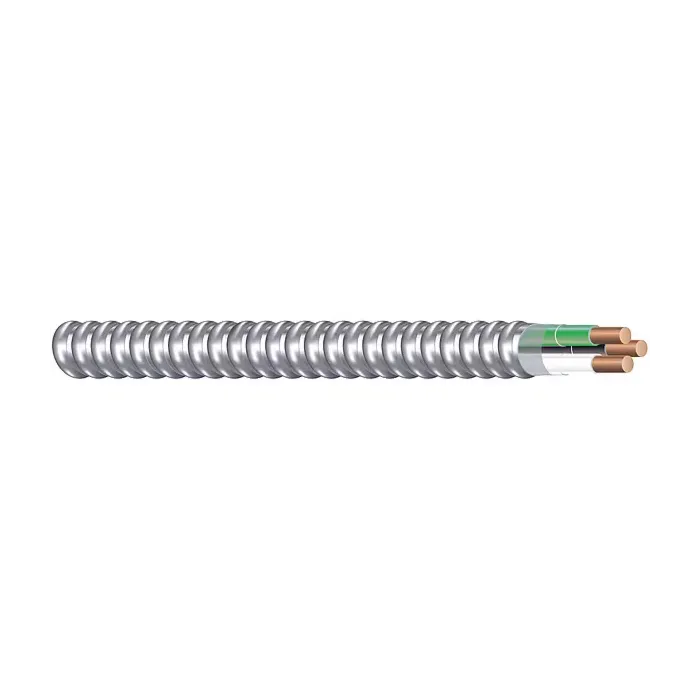

Southwire AlumaFlex™ Type MC Cable with Triple E™ Aluminum Alloy is constructed with Type THHN/THWN-2 conductors rated 90˚ C dry, and a bare equipment grounding conductor. Conductors are AlumaFlex™ AA-8000 series aluminum alloy compact stranded. A binder tape is wrapped over the conductors. Aluminum interlocking armor is applied over the assembly. Conductors also available in High Voltage Colors.
- Southwire Armorlite® Type MC Cable is constructed with soft-drawn copper,
- The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly.
- Aluminum interlocking armor is applied over the assembly.
Southwire AlumaFlex™ Type MC Cable with Triple E™ Aluminum Alloy is constructed with Type THHN/THWN-2 conductors rated 90˚ C dry, and a bare equipment grounding conductor. Conductors are AlumaFlex™ AA-8000 series aluminum alloy compact stranded. A binder tape is wrapped over the conductors. Aluminum interlocking armor is applied over the assembly. Conductors also available in High Voltage Colors.
- Southwire Armorlite® Type MC Cable is constructed with soft-drawn copper,
- The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly.
- Aluminum interlocking armor is applied over the assembly.
Southwire AlumaFlex™ Type MC Cable with Triple E™ Aluminum Alloy is constructed with Type THHN/THWN-2 conductors rated 90˚ C dry, and a bare equipment grounding conductor. Conductors are AlumaFlex™ AA-8000 series aluminum alloy compact stranded. A binder tape is wrapped over the conductors. Aluminum interlocking armor is applied over the assembly. Conductors also available in High Voltage Colors.
- Branch feeder and service power distribution in commercial industrial institutional and multiresidential buildings.
- Concealed or exposed installations
- Installation in cable tray and approved raceways.
Aluminum armored cable with a dedicated green ground wire. Used for branch, feeder, power, lighting control, signal circuits, and service power distribution in commercial, industrial, institutional, and multiresidential buildings. Also for aerial cable on a messenger, cable trays, and approved raceways.
- Fished or embedded in plaster
| Brand | Southwire |
|---|---|
| UPC | 032886345227 |
| Store Location (Lititz, PA) | Aisle 06, Section C1 |
| Package Length (in) | 10.20" |
| Package Width (in) | 9.80" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | 68579252 |
| Length | 14.0000 |
| Height | 6.0000 |
| Width | 14.0000 |
| Weight | 4.000 |
| Warranty | 1 year manufacturers defect |
| Brand | Southwire |
|---|---|
| UPC | 032886345227 |
| Store Location (Lititz, PA) | Aisle 06, Section C1 |
| Package Length (in) | 10.20" |
| Package Width (in) | 9.80" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | 68579252 |
| Length | 14.0000 |
| Height | 6.0000 |
| Width | 14.0000 |
| Weight | 4.000 |
| Warranty | 1 year manufacturers defect |
| Brand | Southwire |
|---|---|
| UPC | 032886345241 |
| Store Location (Lititz, PA) | Aisle 06, Section C1 |
| Package Length (in) | 12.20" |
| Package Width (in) | 11.00" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | 68579223 |
| Length | 14.0000 |
| Height | 6.0000 |
| Width | 14.0000 |
| Weight | 8.000 |
| Color | Silver |
| Warranty | 1 year manufacturers defect |
| Brand | Southwire |
|---|---|
| UPC | 032886345203 |
| Store Location (Lititz, PA) | Aisle 06, Section C1 |
| Package Length (in) | 10.20" |
| Package Width (in) | 9.00" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | 68579221 |
| Country of Origin | United States |
| Length | 25 Ft. |
| Height | 6.0000 |
| Width | 14.0000 |
| Weight | 2.000 |
| Size | 14/2 AWG |
| Number of Conductors | 2 Conductors |
| Type | MC Cable |
| Conductor Material | Copper |
| Conductor Type | Armored |
| Jacket Material | Aluminum |
| Certification | UL Listed |
