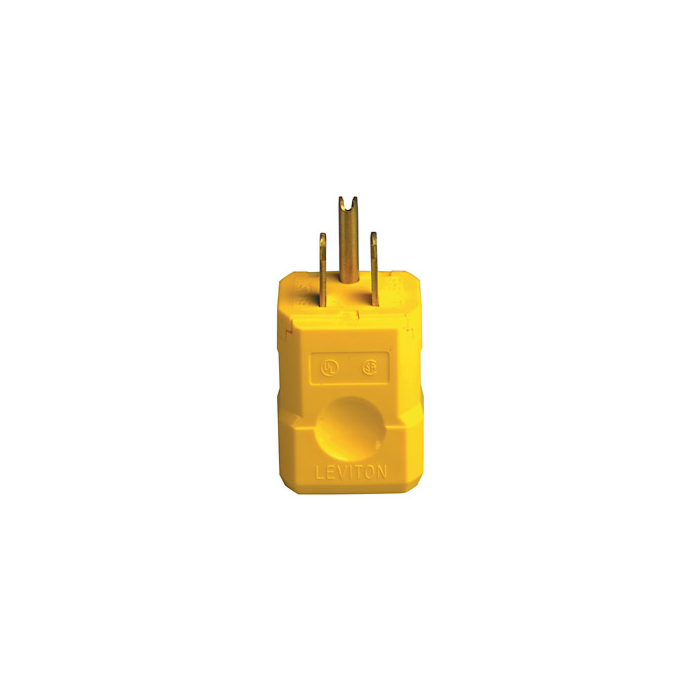

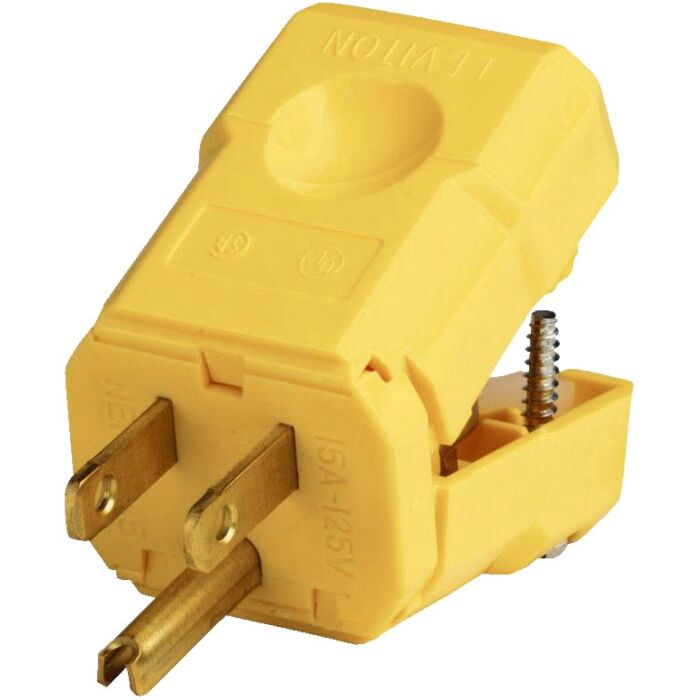

15 Amp, 125 Volt, Straight Blade Plug, Industrial Grade
SKU: L05256
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$9.49
Features
Specifications
Downloads
15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Python - Yellow
- Leviton’s Industrial Grade Straight Blade Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Straight Blade Devices of unmatched flexibility and dependability.
- Black
- 5-15P
| Brand | Leviton |
|---|---|
| UPC | 078477056011 |
| Package Length (in) | 7.25" |
| Package Width (in) | 3.25" |
| Package Height (in) | 3.25" |
| Manufacturer Part Number | 081-05256-0VY |
| ANSI | C-73 |
| CSA C22.2 No. 42 | File LR-406 |
| NEMA | WD-6 |
| NOM | 057 |
| UL 498 | File E13399 |
| Warranty | 2-Year Limited |
| Assembly Screws | Steel, Zinc Plated |
| Back Cover | Thermoplastic |
| Blades/Contacts | Solid Brass |
| Body Material | Super Tough Nylon |
| Clamp Insert | Nylon |
| Color | Yellow |
| Cord-Clamp | Nylon |
| Terminal Screws | Brass |
| Wire Module | Nylon |
| Cord Range | .245 - .700 |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom. | 18-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 12-14 in-lbs |
| Country of Origin | Mexico |
| RoHS Compliant | False |
| Device Type | Straight Blade Plug |
| Environment | Dry |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Amperage | 15 A |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
