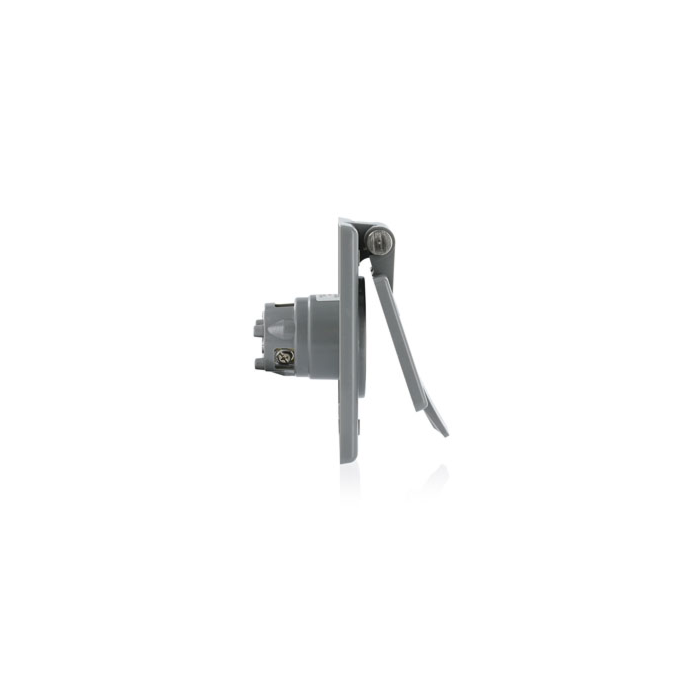

15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Power Inlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Standard Wire Wells Wired, Nylon Strap, - Gray
- Leviton's Straight Blade Power Inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
- 5-15P
Brand | Leviton |
---|---|
UPC | 078477018712 |
Store Location (Lititz, PA) | Aisle 08, Section C2 |
Package Length (in) | 10.88" |
Package Width (in) | 8.88" |
Package Height (in) | 8.88" |
Manufacturer Part Number | 001-05278-CWP |
ANSI | C-73 |
CSA C22.2 No. 42 | File LR-16347 |
NEMA | 5-15P |
NOM | 057 |
UL498 | File E13393 |
Body Material | Nylon |
Color | Gray |
Cover and Plate Material | Glass-Filled Thermoplastic |
Face Material | Nylon |
Grounding Screw | Brass 8-32 |
Line Contacts | Brass |
Strap Material | Nylon |
Terminal Screws | Brass 10-32 |
Product ID | Markings are permanently marked on device |
Terminal Accom. | 18-10 AWG |
Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Termination | Standard Wire Wells |
Country of Origin | United States |
RoHS Compliant | True |
Device Type | Straight Blade Flanged Inlet |
Environment | Dry |
Flammability | Rated V-2 per UL 94 |
Operating Temperature | -40°C to 60°C |
Amperage | 15 A |
Current Limiting | Full Rated Current |
Dielectric Voltage | Withstands 1500V per UL498 |
Grounding | Grounding |
Pole | 2 |
Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
Voltage | 125 VAC |
Wire | 3 |
At Rated Voltage | 1/2 HP |
