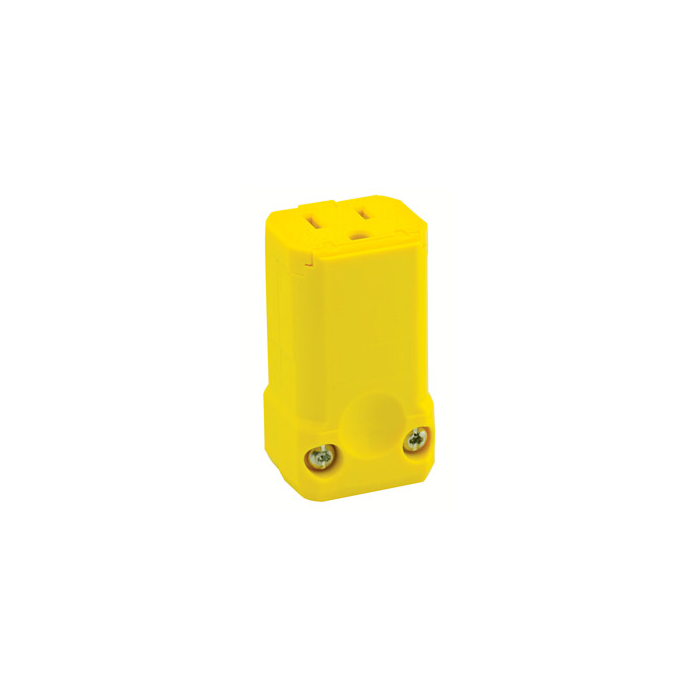

15 Amp, 125 Volt, Straight Blade Connector, Industrial Grade
SKU: L05259
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
Features
Specifications
Downloads

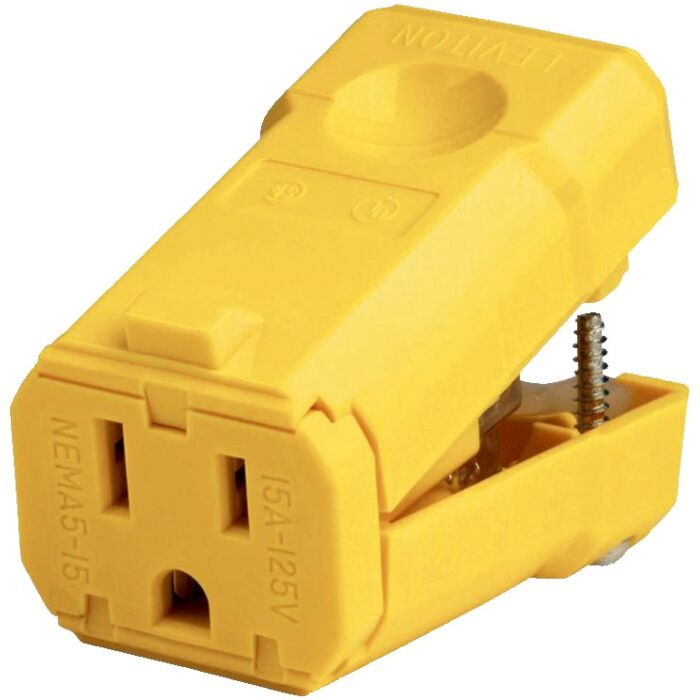

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding, Python - Yellow
- Black
- When it comes to the demanding nature of today’s commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python’s exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today’s faced-paced world where lost minutes on a job can translate into lost profits.
- 5-15R
| Brand | Leviton |
|---|---|
| UPC | 078477055182 |
| Package Length (in) | 7.25" |
| Package Width (in) | 3.25" |
| Package Height (in) | 3.25" |
| Manufacturer Part Number | 081-05259-0VY |
| ANSI | C-73 |
| CSA C22.2 No. 42 | File LR-406 |
| NEMA | WD-6 |
| NOM | 057 |
| UL 498 | File E13399 |
| Warranty | 2-Year Limited |
| Assembly Screws | Steel, Zinc Plated |
| Back Cover | Thermoplastic |
| Blades/Contacts | Solid Brass |
| Body Material | Super Tough Nylon |
| Clamp Insert | Nylon |
| Color | Yellow |
| Cord-Clamp | Nylon |
| Terminal Screws | Brass |
| Wire Module | Nylon |
| Cord Range | .245 - .700 |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom. | 18-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | Mexico |
| RoHS Compliant | False |
| Device Type | Straight Blade Connector |
| Environment | Dry |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Amperage | 15 A |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
