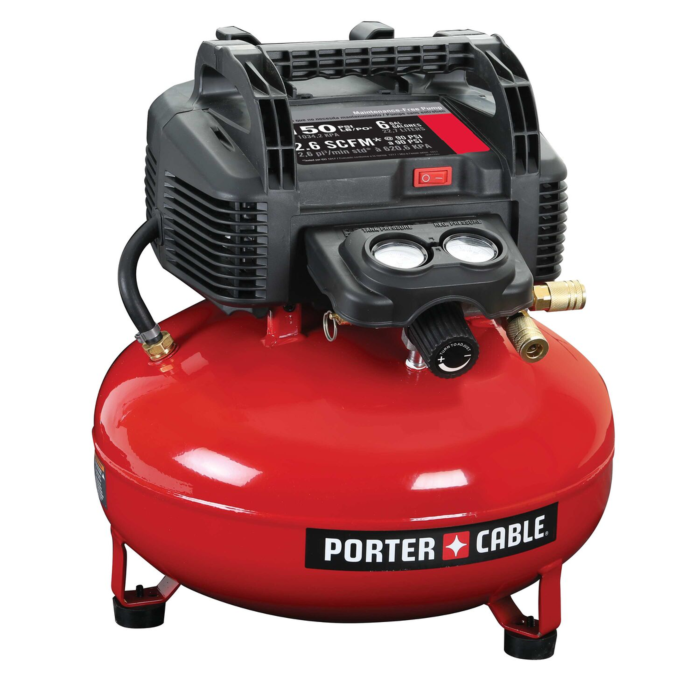

Our 150 psi 6-Gallon Oil-Free Pancake Compressor is constructed with a pancake style tank for stability, with a water drain valve and tough rubber feet. The high-pressure design optimizes air tool performance, delivering 2.6 SCFM at 90 psi for quick recovery time. The oil-free pump provides maintenance-free performance. Transporting is easy with the integrated cord wrap.
- 150 psi max tank pressure stores more air in the tank for longer tool runtimes
- 2.6 SCFM @ 90 psi allows for quick compressor recovery time, per ISO1217
- 6 gal Pancake style tank for stability, includes water drain valve and rubber feet
- Low Amp 120V motor starts easily in cold weather or with extension cord
- Durable oil-free pump for long life and no maintenance
- Shroud, handle and console cover protects vital components, makes unit easier to carry and includes cord wrap
- Two regulated, factory installed air couplers to easily support two users
- Only 30 lbs for easy portability
Brand | Porter Cable |
---|---|
UPC | 885911012256 |
Store Location (Lititz, PA) | Aisle 30, Section M4 |
Package Length (in) | 17.00" |
Package Width (in) | 17.00" |
Package Height (in) | 17.00" |
Manufacturer Part Number | C2002 |
Country of Origin | United States |
Height | 18.375 in |
Length | 17.000 in |
Width | 17.000 in |
Weight | 30 lbs |
Product Diameter Us | 0.377 IN |
Power Source | Electric |
Cordless Vs. Corded | Corded |
Motor Type | Low Amp 120V |
Voltage | 120 V V |
Battery Included | No |
Battery Test Summary | PORTER CABLE_UN38.3 LITHIUM TEST SUMMARY_Rev1,1.pdf |
Charger Included | No |
Amperage | 10 |
Cord Length | 6 Ft |
Prop 65 Generic Warning | Yes |
Warranty | 1LW |
Certifications Or Listings | ETL Listed |
Claims Needed | No |
Air Delivery (Scfm) @ 40Psi | 3.5 |
Air Delivery Scfm @ 90Psi-Uom:Cfm | 2.6 |
Design Type | Pancake |
Detergent Tank Options | Single Tank |
Horsepower | 0.8 |
Individual Vs. Set (Syndigo) | INDIVIDUAL |
Kit | No |
Lock-On Switch | No |
Maximum Pressure Rating | 150 Psi |
Nozzle Fitting Size | 1/4 In. In |
Operation Position | Vertical |
Portable | Yes |
Pressure Gauge | Yes |
Side Handle Included | Yes |
Stage | Single Stage |
Switch Type | On/Off Switch |
Tank Capacity | 6 |
Tank Material | Steel |
Tank Style | Portable |
Wheels | Yes |
