15A NEMA L515 Single Receptacle
SKU: EL515R
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.99
Features
Specifications
Downloads

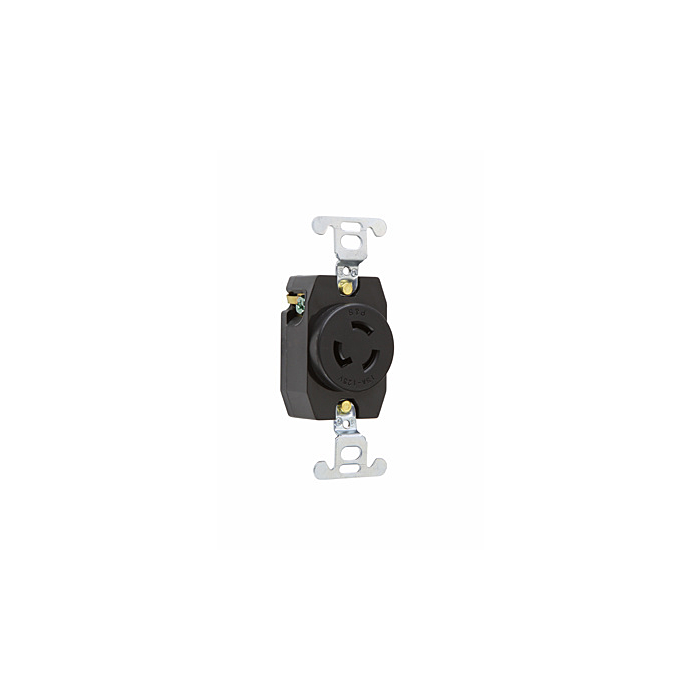

15A NEMA L515 Single Receptacle
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007471007 |
| Package Length (in) | 2.19" |
| Package Width (in) | 1.81" |
| Package Height (in) | 1.81" |
| Manufacturer Part Number | 4710 |
| Depth | 1.0 in |
| Amperage | 15.0 A |
| Height | 2.25 in |
| Standard | UL 498 |
| Width | 1.437 in |
| Country of Origin | Mexico |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Brass Mounting Strap |
| Number of Receptacles | 1.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| NEMA Configuration Code | L5-15R |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | Locking Device, impact resistant |
| Color | Black |
| Product Line | Pass & Seymour |
