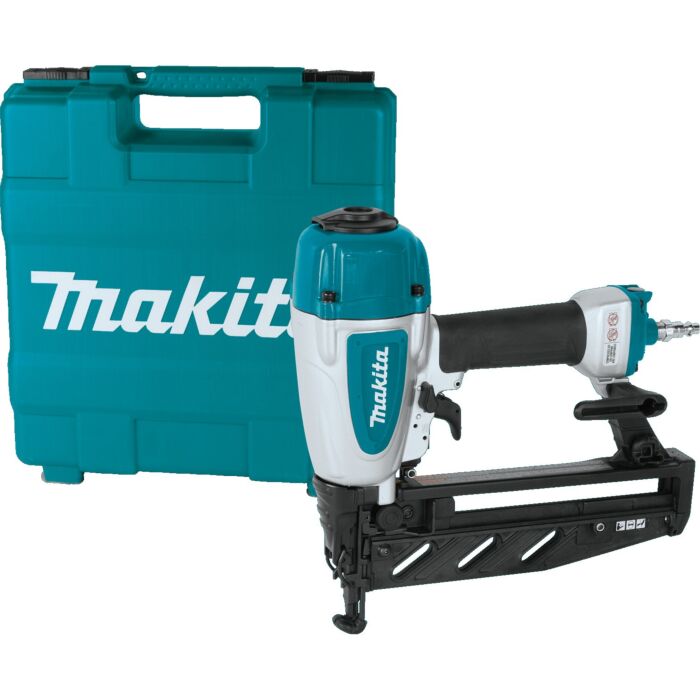

The Makita 16 Gauge Straight Finish Nailer (model AF601) combines a myriad of features and powerful performance in a compact size. The AF601 has a rear-loading magazine that accepts standard 16 ga. straight finish nails sized 1" to 2-1/2". The nail lock-out and large windows alert the user when to reload nails as the contact arm and trigger are used together for controlled firing. With a compact size and weighing in at only 3.8 lbs., the AF601 was engineered for all-day professional use. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a multi-directional exhaust port that directs exhaust air away from the user, a built-in air duster that provides convenient air flow to clear your workspace, and a 2-mode selector switch offering quick control over nailing operation.
- Narrow nose design allows easy nailing access in confined areas
- PRECISION - "Tool-less" depth adjustment for precise flush and countersink finish
- Minimum recommended air delivery of 2.7 SCFM @ 90PSI
- Air Fitting
- 2-mode selector switch for control over nailing operation
- Integrated rubber soft grip for operator comfort
- Safety Glasses
- Built-in air duster provides convenient air flow to clear work surface
- Powerful motor design drives standard 16 gauge, straight finish nails from 1" to 2-1/2" in length
- POWER - Efficient motor design offers leading power performance
- Housing bumpers protect tool and work surface
- CONVENIENCE - Rear-loading magazine for quick loading of nails from 1" to 2-1/2" long
- Pneumatic Nailer Oil (181434-7)
- 3-year limited warranty
- "Tool-less" depth adjustment for more precise nailing
- 2 No-Mar Tip
- Rear lock-and-load magazine holds up to 100 nails for maximum efficiency
- Nail lock-out mechanism protects tool and work surface from dry-fires
- Ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications
- Rear lock-and-load magazine holds up to 100 nails
- Efficient motor design offers leading power performance
- Tool Case
- EFFICIENCY - Nail lock-out mechanism protects tool and work surface
- INCLUDES - Pneumatic nailer oil, safety glasses, air fitting, no-mar tips (2), tool case
- "Tool-less" easy to clear nose for fast and easy nail extraction
- Multi-directional exhaust port directs exhaust air away from operator
- Reversible belt hook allows the tool to remain close
- Magnesium body offers durability and less weight
- "Tool-less" depth adjustment for more precise flush and countersink nailing
- Includes two removable no-mar tips; convenient on tool storage
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381822404 |
| Store Location (Lititz, PA) | Aisle 28, Section M5 |
| Package Length (in) | 12.00" |
| Package Width (in) | 3.75" |
| Package Height (in) | 11.75" |
| Manufacturer Part Number | AF601 |
| Country of Origin | China |
| Fastening category | Finish |
| Tool Hook Included | Yes |
| UPC Code | 088381-822404 |
| Operating Air Pressure (Bar) | 4.9 - 8.3 |
| Operating Air Pressure (PSI) | 70 - 120 |
| Industrial Style Fitting Included | 1/4" NPT x 1/4" |
| Nail Size | 1" to 2-1/2" (16 ga.) |
| Inlet Size | 1/4" NPT |
| Power Type | Pneumatic |
| Air Consumption (SCFM) | 2.8 |
| Dimensions (LxWxH) | 12" x 3-3/4" x 11-3/4" |
| Shipping Weight | 9 lbs. |
| Maximum Magazine Capacity | 100 |
| Air Fitting Included | Yes |
| Net Weight | 3.8 lbs. |
