18.5 Watt T8 LED - 4000K - Medium Bi Pin base - 50000 Average rated hours - 120-277 Volt - Type B - Ballast Bypass - Single or Double Ended Wiring
SKU: S11916
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$14.49
- Buy 25 for $13.04 each and save 10%
Features
Specifications
Downloads

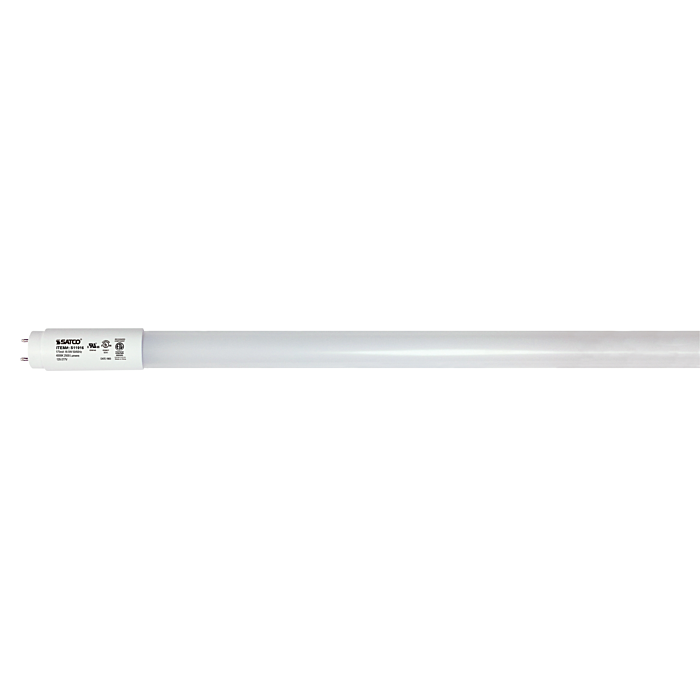

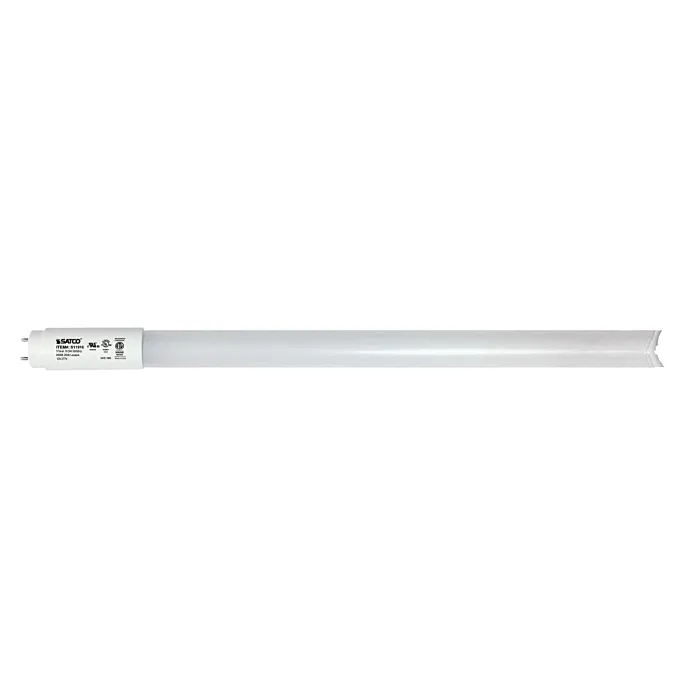

SATCO NUVO's S11916 18.5-watt T8 LED frosted tubular bulb offers cool white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof protection and delivers 50,000 hours of superior illumination.
- Not for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
- Cool white light
- Damp rated for indoor use
- Enclosed Rated Lamp
- L:48.00 D:1.00
- T8, Frosted Finish
- Flicker Free - Less than 2%
- Installation protection - will not light if ballast is not bypassed.
- Ballast Bypass
- Direct wire 120-277V line voltage
- No ballast or external driver required
| Brand | Satco |
|---|---|
| UPC | 045923119163 |
| Package Length (in) | 48.00" |
| Package Width (in) | 7.56" |
| Package Height (in) | 7.56" |
| Manufacturer Part Number | S11916 |
| Country of Origin | China |
| Length | 48 in |
| Weight | 0.47 lbs |
| Warranty | 5-Years |
| Amps | 0.154-0.067A |
| ANSI Base | G13 |
| Ballast Bypass Direct | Ballast Bypass |
| Beam Spread | 180 |
| Burning Position | Universal |
| CCT Selectable | No |
| CA Regulations | Exempt - Base Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Cool White |
| CRI | 80+ |
| DLC Approved | Yes |
| DLC Classification | Standard |
| DLC ID | PLA9OZCCPT5Z |
| DLC Primary Use | Internal Driver/Line Voltage (UL Type B) Lamps |
| Enclosure Rating | Enclosed Rated Lamp |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | Linear |
| Flicker Free | Yes |
| Flr Equiv | 32W |
| Avg Rated Hours | 50000 |
| Housing Color | White |
| Finish | Frost |
| Incandescent Equiv | 90W |
| Indoor Outdoor | Indoor |
| Lamp Base | Medium Bi Pin |
| Lamp Filament | LED |
| Lamp Shape | T8 |
| Lamp Ballast Type A/B/C | Type B |
| Lamp End Type | Double Ended, Single Ended |
| Lensed | Yes |
| Lens Finish | Frost |
| Lens Material | Glass |
| Lumens | 2500L |
| Material | Glass |
| MOD Decimal | 1 in. |
| MOL Decimal | 47.78 in. |
| NSF Approved | ETL Sanitation listed (conforms to NSF) |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Power Factor | 0.92 |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component |
| Location Rating | Damp |
| Shatter Proof Type | PET Coated |
| Surge Protection | Built-in-surge protection - 0.7KV |
| Technology | LED |
| Temperature (CCT) | 4000K |
| THD | 20% |
| Three-Way | No |
| Volts | 120V-277V |
| Watts | 18.5W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
