DEWALT

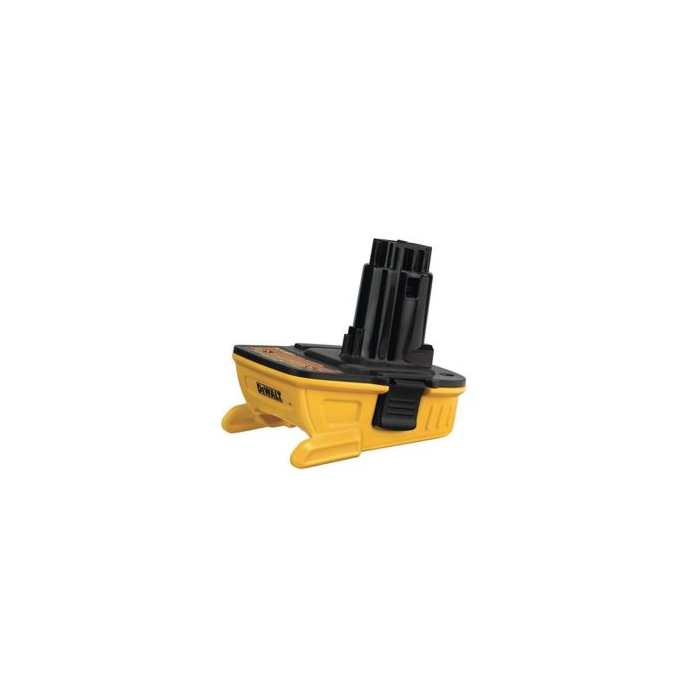

18V to 20V Adapter (Tool Only)

SKU: DCA1820
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 10 in stock
Features chevron-down chevron-up
Listed are these genuine DEWALT DCA1820 Adapters that allow you to now use your older NANO or XRP tools with the latest XR Slide-on Lithium ion Batteries. You simply plug the DEWALT DCA1820 adapter into the base of say your DCD950 / DCD970 Hammer Drill or DCD825 / DC827 Impact Driver and then slide in an XR Lithium ion Battery and away you go. Works perfectly with most NANO or XRP tools as listed below. You can use 1.5 Ah, 2.0 Ah, 3.0 Ah, 4.0 Ah and 5.0 Ah XR Slide-on 18V Batteries with this adapter. FOR: DCD950, DCD970 Drill, Driver Hammer Drills DCD760, DCD775 Drills & Hammer Drills DC212, DC213 SDS Rotary Hammer Drills DC825, DCF826, DC827 Impact Drivers DC820, DC822, DC823 Impact Wrenches DW059 1/2" Impact Wrench DC330 Jigsaw DC385 Reciprocating Saw DC411 Angle Grinder DC490, DC495 Shears DC515 Wet & Dry Vacuum Cleaner DC550 Plaster Cutout Tool DW074 Laser Level DW077 Laser Level DW079 Laser Level DW908 Swivel-head Xenon Torch DW919 Flexible Snake-light Xenon Torch DC527 Fluorescent Hanging Light DW960 Right-angled Drill Door won't shut on these model laser levels with the adapter/battery in place. Works, but not waterproof. Some pulsing is evident when used with these DEWALT torches / lights. This adapter will not work with DEWALT's latest 54V (60V) 6.0 Ah or 9.0 Ah FLEXVOLT Slide-on batteries. Contents: 1 x DEWALT DCA1820 18V XRP / NANO to XR Slide-on Adapter.
  • Allows for use of 20V MAX Li-ion batteries in most 18V DEWALT tools
  • Requires use of 20V MAX DEWALT charger
  • Do not use with premium DEWALT batteries in DC970 or DC759 tools
  • This Adapter will not work with 20V/60V FLEXVOLT Batteries
  • No
Specifications chevron-down chevron-up
Brand DEWALT
UPC 885911424523
Store Location (Lititz, PA) Aisle 22, Section M2
Package Length (in) 4.63"
Package Width (in) 3.19"
Package Height (in) 3.19"
Manufacturer Part Number DCA1820
Country of Origin China
Length 4.688 in
Width 3.625 in
Height 5.375 in
Weight 0.4 lbs
Power Source Electric
Cordless Vs. Corded Cordless
Voltage 20 V V
Battery Included No
Battery Type 20V MAX Lithium Ion
Battery Test Summary DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf
Net Lit-Ion Y/N Yes
Charger Included No
Charger Type Charging Base
Battery Required Yes
Number Of Batteries Required 1
Rechargeable Yes
Disclaimer Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
Prop 65 Generic Warning No
Warranty 3LW1YS90D
Claims Needed Yes
Bare Tool Yes
Compatibility Compatible with Most DEWALT 18V Tools
Individual Vs. Set (Syndigo) INDIVIDUAL
Number Of Ports 1
Product Finish Black/Yellow
