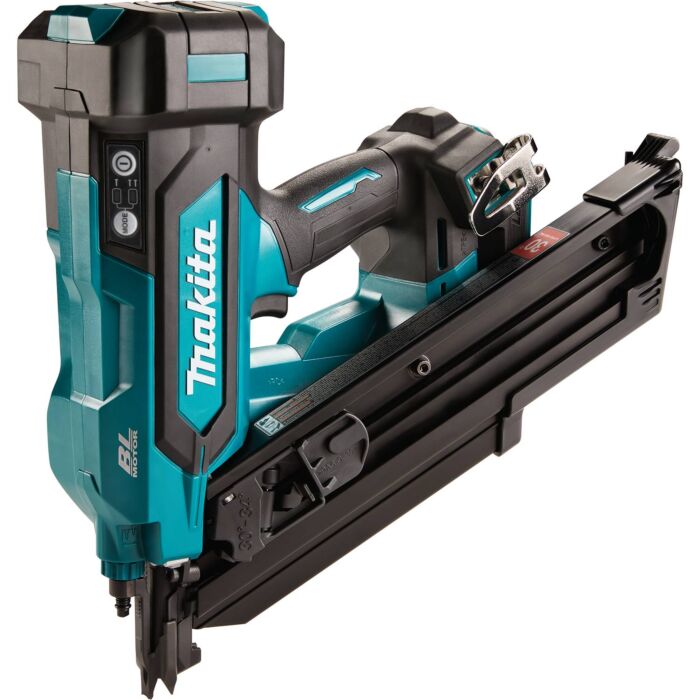

The Makita 18V LXT® 30° Clipped Head 3 1/2" Framing Nailer (XNB07) drives full-round head nails into dense engineered lumber with the power of a pneumatic nailer. The XNB07 can drive up to 1,000 framing nails on a single charge of a 18V LXT® 6.0Ah battery (battery sold separately).
The 30° Clipped Head 3 1/2" Framing Nailer features a two-mode selector switch that allows the operator to select sequential nailing or bump fire options. It features an anti-slip nose for controlled nailing at almost any angle. The Framing Nailer features a “tool-less" depth adjustment engineered for more precise flush and countersink nailing.
- Drives full-clipped head nails into dense engineered lumber with power and ease
- Drives up to 1,000 framing nails on a single charge (battery not included)*
- 2-mode selector switch allows operator to select sequential nailing or bump fire options
- Anti-slip nose for controlled nailing at an angle
- "Tool-less" depth adjustment engineered for more precise flush and countersink nailing
- Anti-dry-fire mechanism engineered to help prevent driving blanks
- Weighs only 11.9 lbs. with 18V LXT® battery (battery not included) for reduced operator fatigue
- Rear lock-and-load magazine, with 58 nail capacity for maximum efficiency
- Built-in L.E.D. light illuminates the work area
- Belt Hook with retractable extra-wide tool hook secures the tool when not in use
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Drives 30º collated framing nails from 2" to 3-1/2" in length and .113 to .131 in diameter
- Extended Capacity Magazine Set that holds 97 Nails part no.1914P1-6 available (sold separately)
- 18V LXT® Lithium-Ion 6.0Ah battery BL1860B reaches a full charge in 55 minutes or less (battery sold separately)
- Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- 3-year limited warranty
- Only use genuine Makita batteries and chargers
- *18V LXT® 6Ah Battery
| Brand | Makita |
|---|---|
| UPC | 197050009609 |
| Store Location (Lititz, PA) | Aisle 28, Section M5 |
| Package Length (in) | 7.48" |
| Package Width (in) | 26.18" |
| Package Height (in) | 19.21" |
| Manufacturer Part Number | XNB07Z |
| Type | Cordless |
| Size | 30° |
| Power | 18V |
| Style | Framing Nailer |
| Includes | Bare Tool |
| Product_line | LXT |
| Power Type | Cordless |
| Fastening category | Framing |
| Maximum Magazine Capacity | 58 |
| Dimensions (LxWxH) | 12-7/8" x 7-3/8" x 14-1/8" |
| Inlet Size | 1/4" NPT |
| Net Weight | 11.9 lb |
| Tool Hook Included | Yes |
