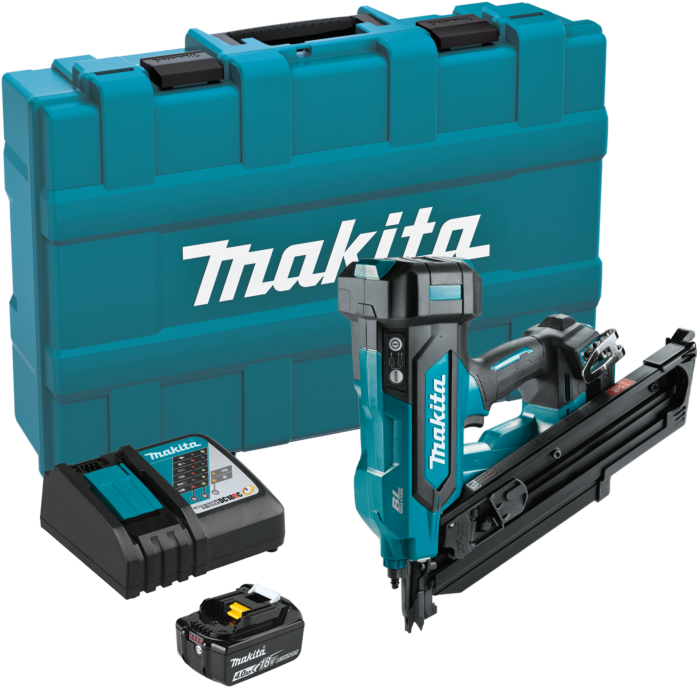

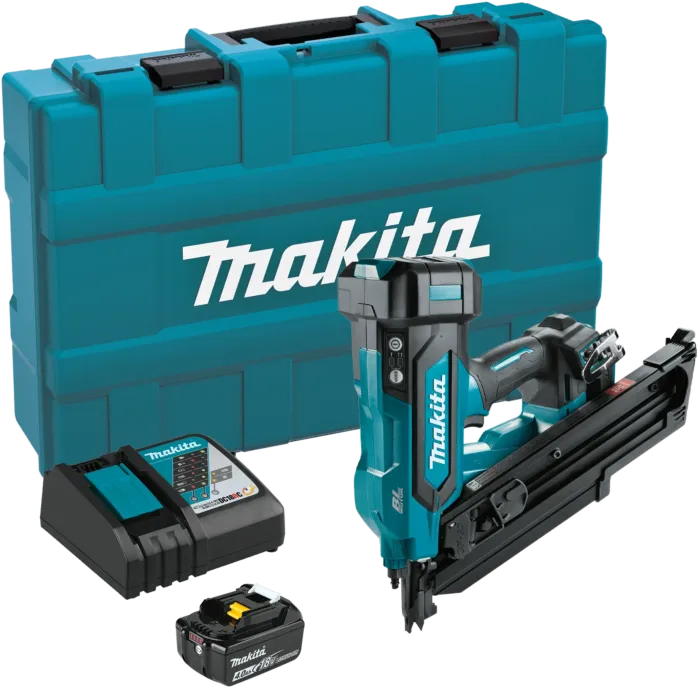

The Makita 18V LXT® 30° Clipped Head 3 1/2" Framing Nailer delivers pneumatic power to drive 30º clipped head framing nails into dense engineered lumber, capable of up to 1,000 nails on a single charge of an 18V LXT® 6.0Ah battery. Weighing only 11.9 lbs. (with battery), it is designed for reduced operator fatigue and features a rubberized soft grip and built-in L.E.D. light for comfort and convenience. Performance features include a two-mode selector (sequential or bump fire), an anti-slip nose, and a "tool-less" depth adjustment for precise nailing. It accepts 30º clipped head framing nails from 2" to 3-1/2" in length and has a 58-nail capacity rear magazine (expandable to 97 nails with an accessory). As part of the expansive 18V LXT® System, the nailer utilizes Star Protection Computer Controls™ to monitor and protect the tool and battery against overloading, over-discharging, and overheating, optimizing performance and battery life.
(1) 18V LXT® Brushless 30º Clipped Head 3-1/2" Framing Nailer
(1) 18V LXT® Lithium-Ion 4.0Ah Battery
(1) 18V LXT® Lithium-Ion Rapid Optimum Charger
(1) No‑Mar Tip, XNB03Z, XNB07Z
(1) Hex Wrench
(1) Belt Hook, XNB03Z, XNB07Z
(1) Rafter Hook, XNB03Z, XNB07Z
(1) Tool Case
- Drives clipped head nails into dense engineered lumber with power and ease
- Drives up to 1,000 framing nails on a single charge
- 2-mode selector switch allows operator to select sequential nailing or bump fire options
- Anti-slip nose for controlled nailing at an angle
- "Tool-less" depth adjustment engineered for more precise flush and countersink nailing
- Anti-dry fire mechanism engineered to help prevent driving blanks
- Weighs only 11.9 lb with 18V LXT® battery for reduced operator fatigue
- Rear lock-and-load magazine, with 58 nail capacity for maximum efficiency
- Built-in L.E.D. light illuminates the work area
- Belt hook with retractable extra-wide tool hook secures the tool when not in use
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Drives 30º clipped head framing nails from 2" to 3-1/2" in length and .113 to .131 in diameter
- 18V LXT® Lithium-Ion 4.0Ah battery BL1840B reaches a full charge in 55 minutes or less
- Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life
- Star Protection Computer Controls™ protect against overloading, over-discharging, and over-heating
- Makita technology delivers category-leading charge time
- 3-year limited warranty on tool, battery, and charger
| Brand | Makita |
|---|---|
| Date Added | Apr 16, 2026 |
| UPC | 197050021540 |
| Package Length (in) | 7.30" |
| Package Width (in) | 17.75" |
| Package Height (in) | 21.65" |
| Manufacturer Part Number | XNB07M1 |
| Power Type | Cordless |
| Fastening category | Framing |
| Nail Size | 2" - 3-1/2" .113" - .131" shank diameter paper collated |
| Maximum Magazine Capacity | 58 |
| Dimensions (LxWxH) | 12-7/8" x 7-3/8" x 14-1/8" |
| Inlet Size | 1/4" NPT |
| Net Weight | 11.9 lb |
| Tool Hook Included | Yes |
| Nailer Type | Framing Nailer |
| Motor Type | Brushless |
| Shipping Weight | 15.26 lb |
| UPC Code | 197050-021540 |
