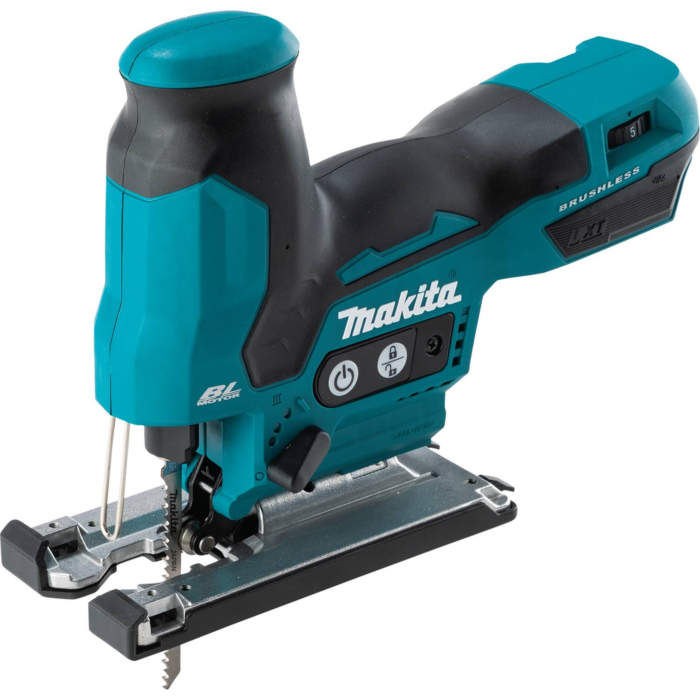

The Makita 18V LXT® Brushless Jig Saw (XVJ05Z, tool only) combines precision and power with the efficiency of a brushless motor in a compact design. The XVJ05Z is engineered to deliver the power and performance of a corded jig saw but without the hassles of a cord. It is ideal for professional woodworkers, cabinetry makers, specialized residential construction workers and any pro-contractor seeking a best-in-class cordless jig saw. The XVJ05Z features an ergonomically designed barrel grip, which is closer to the work surface for more precise cuts. The XVJ05Z has 3 orbital settings plus straight cutting for faster and more accurate cuts in a variety of materials. The variable 5-speed control dial (800-3,000 SPM) enables the user to match the speed of the tool to the application. In addition, the efficient brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge than similar non-brushless tools. Electronic controls efficiently use battery energy to match the changing demands of the application for increased power and speed when needed. And since there are no carbon brushes, the brushless motor runs cooler and more efficiently for longer life. Convenience features include a “tool-less” blade change system that allows for faster blade installation and removal, On/Off button with a separate lock button for workpiece protection, and dual L.E.D. lights to illuminate the work area. The base bevels and locks from 0° to 45° left or right for more precise bevel cuts. It weighs only 5.0 lbs. with an 18V LXT® 5.0Ah battery (sold separately). It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- L.E.D. light with light reduction function to reduce glare when tool is being used upside down
- Ergonomically compact barrel grip design allows closer-to-work control and more precise cuts
- Electric brake for maximum productivity
- Soft no-load mode creates a more accurate starting cut by slowing increasing the speed of the blade when it engages the material
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- "Tool-less" blade change lever allows for faster blade installation and removal for increased productivity
- Built-in dust blower clears the line of cut for increased accuracy
- Variable 5-speed control dial (800-3,000 SPM) enables user to match the speed to the application
- Compact barrel grip design allows for control and more precise cuts
- Only use genuine Makita batteries and chargers
- Makita-built brushless variable speed motor delivers 800-3,000 strokes per minute for faster and more efficient cutting
- Base bevels and locks from 0°- 45° left or right for more precise bevel cuts
- Built-in L.E.D. light illuminates the work area
- 3 orbital settings plus straight cutting for use in a wide range of materials
- Cuts up to 135 ft. of 1" MDF on a single charge using 5.0Ah battery BL1850B (battery not included)
- On/Off button with separate lock button for work piece protection
- 3-year limited warranty
| Brand | Makita |
|---|---|
| UPC | 088381780377 |
| Store Location (Lititz, PA) | Aisle 25, Section N3 |
| Package Length (in) | 3.90" |
| Package Width (in) | 11.50" |
| Package Height (in) | 10.35" |
| Manufacturer Part Number | XVJ05Z |
| Country of Origin | China |
| Blade Shank | "T" Tang |
| UPC Code | 088381-780377 |
| Motor Type | Brushless |
| Variable speed dial | Yes |
| Max. Cutting Capacity at 90° (aluminum) | 25/32" |
| Battery | 18V LXT® Lithium-Ion |
| Max. Cutting Capacity at 90° (wood) | 5-5/16" |
| Overall Length | 10-1/4" |
| Power Type | Cordless |
| Net Weight (with battery, sold separately) | 5 lb |
| Form Factor | 18V LXT® |
| Shipping Weight | 4.45 lb |
| Orbital settings | Yes |
| Tool-less blade change | Yes |
| Strokes Per Minute (variable speed) | 800 - 3,000 SPM |
| Max. Cutting Capacity at 90° (steel) | 3/8" |
| Length of Stroke | 7/8" |
