Makita

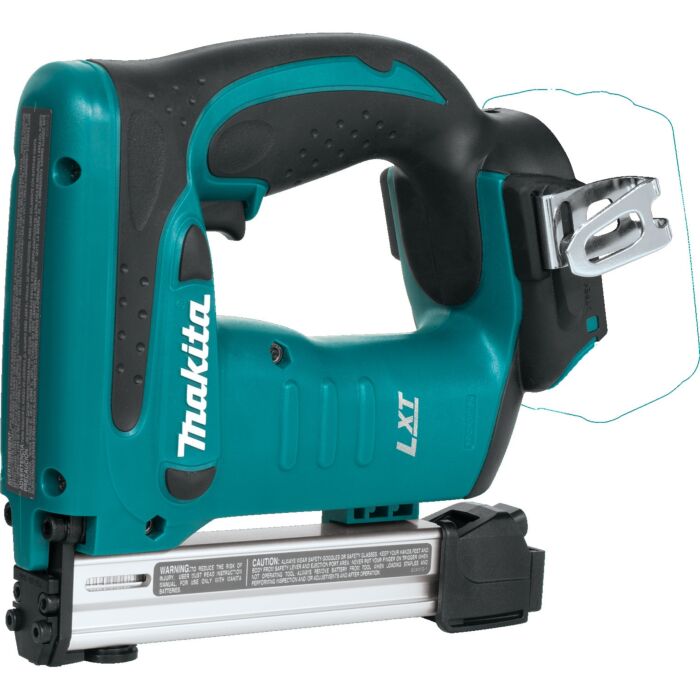

18V LXT® Lithium-Ion Cordless 3/8" Crown Stapler, Tool Only

SKU: XTS01Z
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store Not stocked

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
StealthMounts Makita Tool Mounts 18V 4pk
StealthMounts
$24.99
TMMK18BLU4
StealthMounts Makita Battery Mounts 18V 6pk
StealthMounts
$24.99
BMMK18BLU6
Features chevron-down chevron-up
The Makita 18V LXT® Lithium-Ion Cordless 3/8” Crown Stapler (model XTS01Z, tool only) is a true utility stapler engineered for a range of trades. The XTS01Z is compact and powerful, and can drive a wide range of 3/8” crown staple lengths flush into hardwoods like oak, maple, cherry, and more. It’s part of Makita’s expanding 18V Lithium-Ion series, the world’s largest cordless tool line-up powered by an 18V Lithium-Ion slide-style battery. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside. Versatile and Easy to Use The XTS01Z will drive 3/8” to 7/8” length staples (3/8” crown); and will also utilize Arrow® T50 type staples for maximum versatility. The easy-to-use depth control setting can be adjusted with a single knob. The rugged machined aluminum magazine ensures smooth loading and feeding of staples, with a convenient window on the magazine that shows the number of remaining staples. Ergonomic Design in a Compact Size The spring-loaded driving mechanism allows for a more compact tool with less weight: it weighs only 5.3 lbs. (with battery, sold separately) at just 9-7/8” in length. The ergonomic shape fits like a glove with even pressure and easy control, and the soft grip handle provides increased comfort on the job. Versatile Design for a Range of Applications The XTS01Z is engineered for a range of stapling tasks including drywall, roofing, furniture, upholstery, and utility installation. It can even be used in a production environment for exterior framers to apply house wrap. It is perfect for residential construction, remodeling, woodworking, cabinetry, or for any pro contractor who requires a best-in-class engineered cordless 3/8” Crown Stapler.
  • POWER - Fastens 3/8" crown staples from 3/8" to 7/8" in length; also drives Arrow® T50 type staples
  • A convenient window on magazine shows the number of remaining staples
  • INCLUDES - Tool only (battery and charger not included)
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
  • Spring-loaded driving mechanism allows for a more compact tool with less weight
  • 3-year limited warranty
  • Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
  • CONTROL - Easy to use depth control setting by turning adjustment knob
  • Compact and ergonomic design at only 9-7/8" long
  • Fastens a wide range of 3/8" crown staples from 3/8" to 7/8" in length; also utilizes Arrow® T50 type flat crown staples
  • Contact actuation is well-suited for production environment
  • Weighs only 5.3 lbs. with battery for reduced operator fatigue (battery sold separately)
  • Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
  • CONVENIENCE - Spring-loaded driving mechanism allows for a more compact tool with less weight
  • Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • Rubberized soft grip handle provides increased comfort on the job
  • Easy to use depth control setting by turning adjustment knob
  • COMFORT - Weighs only 5.3 lbs. with battery for reduced operator fatigue
  • Rugged machined aluminum magazine ensures smooth loading and feeding of staples
  • WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Specifications chevron-down chevron-up
Brand Makita
UPC 088381678230
Package Length (in) 3.40"
Package Width (in) 7.60"
Package Height (in) 7.60"
Manufacturer Part Number XTS01Z
Country of Origin Japan
Leg Length 3/8" to 7/8"
UPC Code 088381-678230
Motor Type Brushed
Maximum Magazine Capacity 98
Crown 3/8"
Dimensions (LxWxH) 9-7/8" x 3-5/8" x 8-3/8"
Battery 18V LXT® Lithium-Ion
Form Factor (LXT) 18V LXT®
Shipping Weight 4.4 lbs.
Gauge T50® Style
Net Weight (with battery) 5.3 lbs.
Power Type Cordless
Fastening category Stapler
