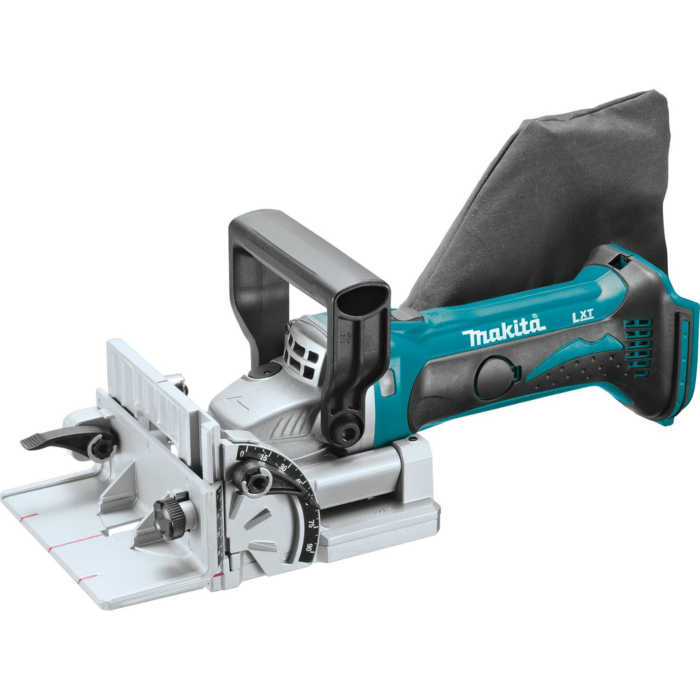

18V LXT® Lithium-Ion Cordless Plate Joiner (Bare Tool)
SKU: XJP03Z
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$319.99
Features
Specifications
Downloads
The Makita 18V LXT® Lithium-Ion Cordless Plate Joiner (model XJP03Z, tool only) provides portability and performance in the field or in the shop -- without the cord. The XJP03Z combines power and precision with ease-of-use features for strong and accurate biscuit joints for furniture making, cabinet construction and fine woodworking applications. (note: battery and charger sold separately) It’s part of Makita’s expanding 18V Lithium-Ion series, the world’s largest cordless tool line-up powered by an 18V Lithium-Ion slide-style battery. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside. The XJP03Z provides up to 320 cuts or 160 joints on a single charge (18V LXT® 3.0Ah battery, sold separately) . The rack-and-pinion vertical fence system is engineered for accurate fence adjustments, and the cast aluminum pivot fence has three positive stops at 0 degrees, 45 degrees, and 90 degrees. The blade diameter is 4 inches, and there are six depth settings with one-touch stops for the most common biscuit sizes including #0, #10 and #20.
- Large and easy-to-operate cam locks for angle guide and fence adjustments
- Large top grip handle for improved handling
- Rack-and-pinion vertical fence system engineered for accurate fence adjustments
- “Tool-less” blade cover and shaft lock for fast and easy blade changes
- Cast aluminum front body for added durability
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- Non-marring rubber inserts on shoe engineered to prevent material from slipping
- Charger communicates with the battery's built-in chip to optimize battery life by actively controlling current, voltage, and temperature (battery and charger sold separately)
- Slim and ergonomic body design for added comfort
- Cordless plate joiner provides portability and performance in the field or in the shop without the cord
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging, and over-heating
- Cast aluminum pivot fence with three positive stops at 0°, 45° and 90°, and easy centering on 3/4" material
- Six depth settings with one-touch stops for #0, #10, and #20 and most common biscuits sizes
- Category-leading charge time (battery and charger sold separately)
- 3-year limited warranty
| Brand | Makita |
|---|---|
| UPC | 088381678353 |
| Store Location (Lititz, PA) | Aisle 25, Section N4 |
| Package Length (in) | 5.20" |
| Package Width (in) | 5.80" |
| Package Height (in) | 5.80" |
| Manufacturer Part Number | XJP03Z |
| Country of Origin | United States |
| Motor Type | Brushed |
| Max. Cutting Depth | 3/4" |
| Blade Diameter | 4" |
| Shipping Weight | 8.2 lb |
| Battery | 18V LXT® Lithium-Ion |
| Fits biscuit sizes #0, #10, #20 | Yes |
| Form Factor (LXT) | 18V LXT® |
| No Load Speed | 12,000 RPM |
| Overall Length | 13-3/4" |
| Power Type | Cordless |
| UPC Code | 088381-678353 |
| Net Weight (with battery) | 6.7 lb |
| Max. no load speed | 12,000 RPM |
| Warning | Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov. |
